SIM535-A01-DEV-01
ObsoleteE2IP Technologies Inc.
DEV KIT +SPA200 SIM535-A01-R55AL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SIM535-A01-DEV-01
ObsoleteE2IP Technologies Inc.
DEV KIT +SPA200 SIM535-A01-R55AL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SIM535-A01-DEV-01 | SIM535 Series |
|---|---|---|
| Backlight | - | LED - White |
| Diagonal Screen Size | - | 177.8 mm |
| Diagonal Screen Size | - | 7 in |
| Display Mode | - | Transmissive |
| Display Type | - | TFT - Color |
| Dot Pitch | - | 0.18 mm |
| Dot Pitch | - | 0.19 mm |
| Dot Pixels | - | WVGA |
| Dot Pixels | - | 800 |
| Dot Pixels | - | 480 |
| Embedded | MCU, 32-Bit | MCU, 32-Bit |
| Embedded | True | True |
| Function | LCD Touch Screen | LCD Touch Screen |
| Graphics Color | - | Green, Red, Blue |
| Interface | - | SPI, UART, I2C |
| Primary Attributes | WVGA | WVGA |
| Primary Attributes | 7 in | 7 in |
| Primary Attributes [x] | 800 | 800 |
| Primary Attributes [y] | 480 | 480 |
| Secondary Attributes | Resistive 4-Wire Touch Screen | Resistive 4-Wire Touch Screen |
| Supplied Contents | Cable(s), Power Supply, Board(s) | Cable(s), Power Supply, Board(s) |
| Touchscreen | - | Resistive |
| Type | Display | Display |
| Utilized IC / Part | SIM535 | SIM535 |
| Viewing Area | - | 154.08 mm |
| Viewing Area | - | 85.92 mm |
SIM535 Series
LCD MODULE 7.0" 800X480X24BPP TF
| Part | Display Type | Backlight | Dot Pixels | Dot Pixels [x] | Dot Pixels [y] | Touchscreen | Graphics Color | Viewing Area [x] | Viewing Area [y] | Display Mode | Diagonal Screen Size | Diagonal Screen Size | Dot Pitch [y] | Dot Pitch [x] | Interface | Primary Attributes | Primary Attributes [x] | Primary Attributes | Primary Attributes [y] | Embedded | Embedded | Secondary Attributes | Type | Function | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E2IP Technologies Inc. SIM535-A03-R55ALL-01 | TFT - Color | LED - White | WVGA | 800 | 480 | Resistive | Blue, Green, Red | 154.08 mm | 85.92 mm | Transmissive | 177.8 mm | 7 in | 0.18 mm | 0.19 mm | I2C, SPI, UART | |||||||||||
E2IP Technologies Inc. SIM535-A03-R22ALL-05 | TFT - Color | LED - White | WVGA | 800 | 480 | Resistive | Blue, Green, Red | 154.08 mm | 85.92 mm | Transmissive | 177.8 mm | 7 in | 0.18 mm | 0.19 mm | I2C, SPI, UART | |||||||||||
E2IP Technologies Inc. SIM535-A03-R22ALL-01 | TFT - Color | LED - White | WVGA | 800 | 480 | Resistive | Blue, Green, Red | 154.08 mm | 85.92 mm | Transmissive | 177.8 mm | 7 in | 0.18 mm | 0.19 mm | I2C, SPI, UART | |||||||||||
E2IP Technologies Inc. SIM535-A01-DEV-01 | WVGA | 800 | 7 in | 480 | 32-Bit, MCU | Resistive 4-Wire Touch Screen | Display | LCD Touch Screen | Board(s), Cable(s), Power Supply | SIM535 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SIM535 Series

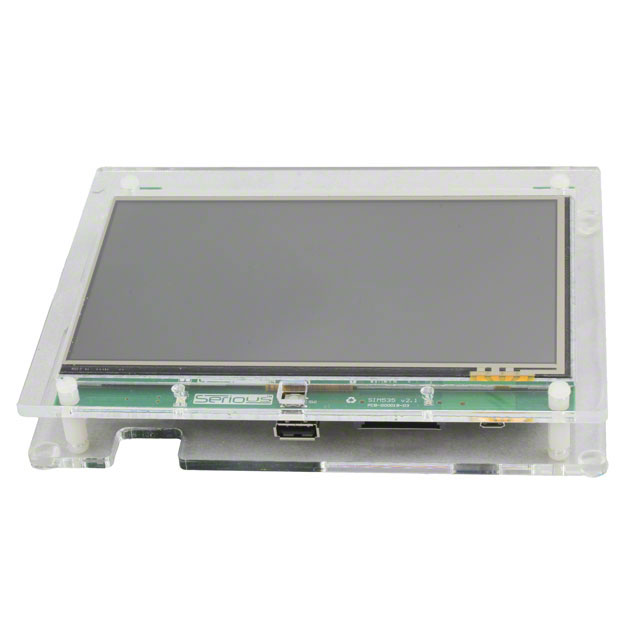

SIM535 LCD Touch Screen Display Evaluation Board
