RT 500
ObsoleteLEM USA Inc.
SENSOR CURRENT XFMR 500A AC
RT 500
ObsoleteLEM USA Inc.
SENSOR CURRENT XFMR 500A AC
Description
General part information

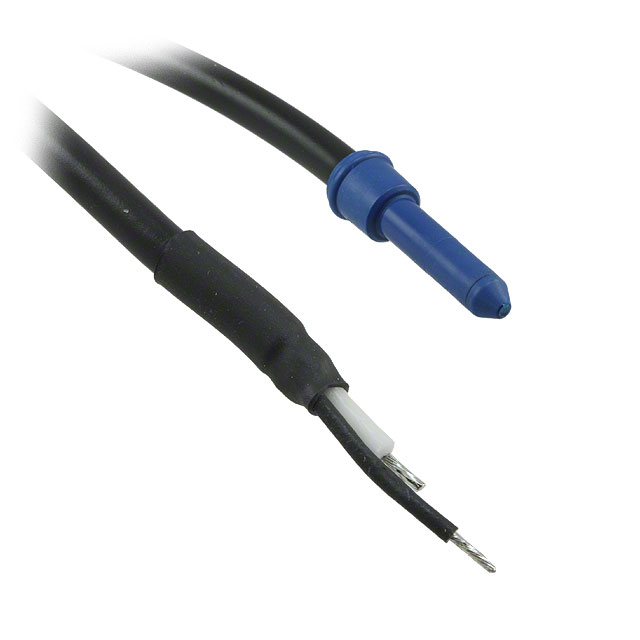

RT 500
Current Sensor 500A 1 Channel Transformer w/Conditioning Bidirectional Probe
Technical Specifications
Parameters and characteristics for this part
| Specification | RT 500 |
|---|---|
| Current - Sensing | 500 A |
| For Measuring | AC |
| Frequency | 700 kHz |
| Mounting Type | Free Hanging |
| Number of Channels | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -10 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Probe |
| Polarization | Bidirectional |
| Sensor Type | Transformer w/Conditioning |
| Voltage - Supply | Self Powered |
| Voltage - Supply Type | Self Powered |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
