0507005.MXP

Active

LITTELFUSE

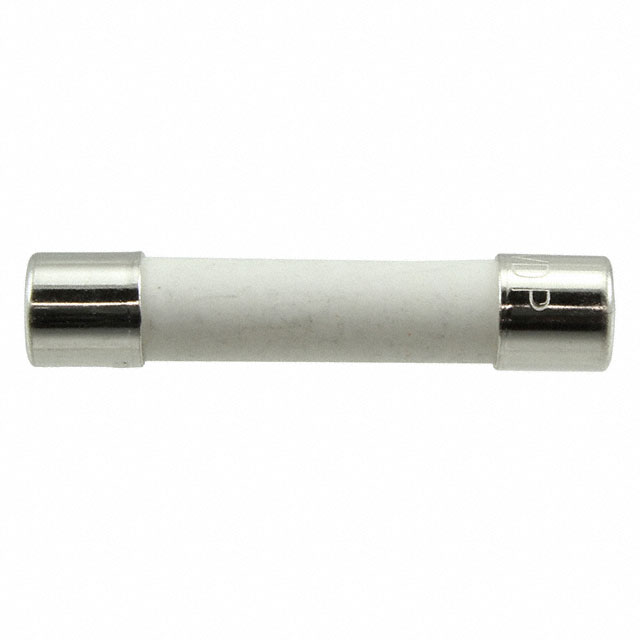

FUSE 650V DC 3AB PIGTAIL PB-FREE 5A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

0507005.MXP

Active

LITTELFUSE

FUSE 650V DC 3AB PIGTAIL PB-FREE 5A

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0507005.MXP	0507005 Series

Approval Agency	CE, cURus	CE, cURus
Breaking Capacity @ Rated Voltage	150 A	150 A
Current Rating (Amps)	5 A	5 A
DC Cold Resistance	0.042 Ohms	0.042 Ohms
Fuse Type	Cartridge, Ceramic	Cartridge, Ceramic
Melting I²t	12.5 I²t	12.5 I²t
Mounting Type	Requires Holder	Requires Holder, Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Cartridge, Non-Standard	Cartridge, Non-Standard, Cartridge, Non-Standard (Axial)
Size / Dimension	-	6.99 - 32.72 mm
Size / Dimension [diameter]	0.25 in	0.25 - 0.275 in
Size / Dimension [diameter]	6.35 mm	6.35 mm
Size / Dimension [x]	31.75 mm	31.75 mm
Size / Dimension [x]	1.25 "	1.25 - 1.288 "
Voltage Rating - DC	650 V	650 V

0507005 Series

FUSE 650V DC 3AB Pigtail Pb-free 5A

Part	Breaking Capacity @ Rated Voltage	Melting I²t	DC Cold Resistance	Current Rating (Amps)	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Package / Case	Approval Agency	Fuse Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension
LITTELFUSE 0507005.MXP	150 A	12.5 I²t	0.042 Ohms	5 A	650 V	31.75 mm	0.25 in	6.35 mm	1.25 "	Cartridge, Non-Standard	CE, cURus	Cartridge, Ceramic	Requires Holder	-55 °C	125 °C
LITTELFUSE 0507005.MXEP	150 A	12.5 I²t	0.042 Ohms	5 A	650 V		0.275 "		1.288 "	Cartridge, Non-Standard (Axial)	CE, cURus	Cartridge, Ceramic	Through Hole	-55 °C	125 °C	6.99 mm, 32.72 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.07
		5	$ 5.86
		10	$ 5.65
		50	$ 4.39
		100	$ 3.66
		250	$ 3.56
		500	$ 3.03
		1000	$ 2.88
Newark	Each	1000	$ 3.29
		2500	$ 3.06

Description

General part information

0507005 Series

The 507 Series Fuse is a 6x32mm 650VDC ceramic body fuse with current ratings from 1A to 8A. It is RoHS compliant and 100% Pb free. The 507 provides enhanced over-current protection for high voltage applications, which makes it ideal for variable frequency drives (VFDs), power inverters, photovoltaic (PV) inverters, DC/DC converters and high voltage power supplies, etc. As the density of power on the circuit becomes higher and higher, these miniaturized high-voltage fuses represent the optimum solutions for DC power over-current protection.
