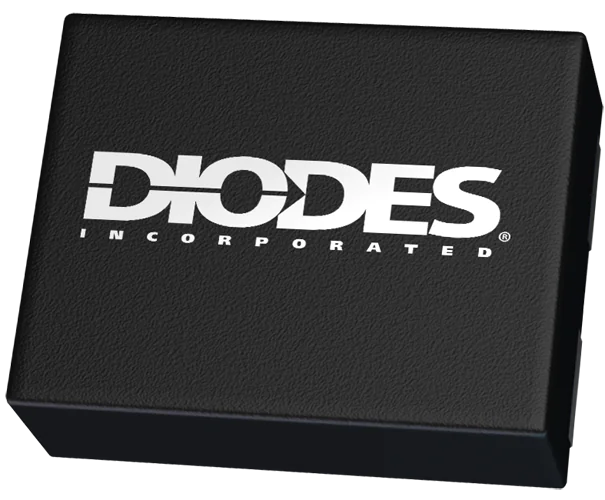

SBRT2U45LP-7
ObsoleteDiodes Inc
NRND = NOT RECOMMENDED FOR NEW DESIGN
SBRT2U45LP-7
ObsoleteDiodes Inc
NRND = NOT RECOMMENDED FOR NEW DESIGN
Description
General part information
SBRT2U45LP-7
TN1.pdf
Technical Specifications
Parameters and characteristics for this part
| Specification | SBRT2U45LP-7 |
|---|---|
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage | 100 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 150 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | 3-UDFN |
| Package Name | X1-DFN1411-3 |
| Qualification | AEC-Q101 |
| Speed | Standard Recovery |
| Speed - Fast Recovery (Minimum) | 200 mA, 500 ns |
| Speed - Recovery Current | 200 mA, 200 mA |
| Speed - Recovery Time | 500 ns |
| Technology | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) | 550 mV |
