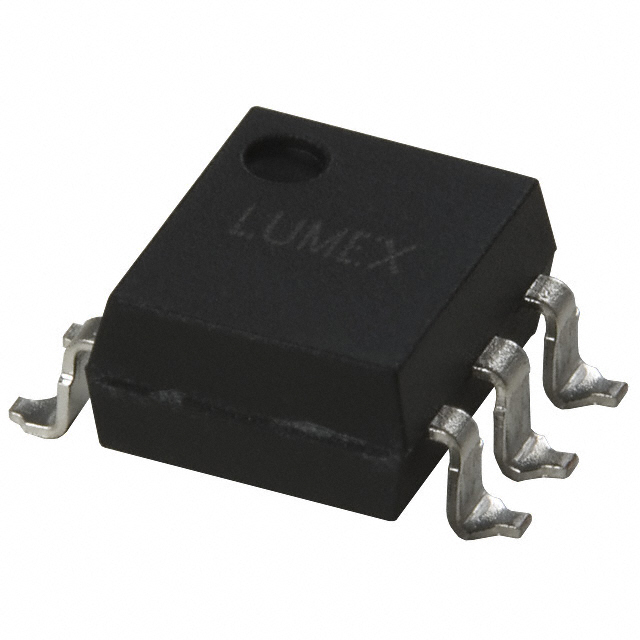

OCP-PCP116-TR

Active

Lumex Opto/Components Inc.

OPTOISO 5KV OPEN COLLECTOR 6SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

OPTOISO 5KV OPEN COLLECTOR 6SMD

Technical Specifications

Parameters and characteristics for this part

Specification	OCP-PCP116-TR

Current - DC Forward (If) (Max) [Max]	50 mA
Current - Output / Channel	50 mA
Input Type	DC
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Type	Open Collector
Package / Case	6-SMD, Gull Wing
Propagation Delay tpLH / tpHL (Max) [custom]	9 µs
Propagation Delay tpLH / tpHL (Max) [custom]	15 µs
Rise / Fall Time (Typ) [custom]	50 ns
Rise / Fall Time (Typ) [custom]	100 ns
Supplier Device Package	6-SMD

OPTOISO 5KV OPEN COLLECTOR 6SMD

Part	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Number of Channels	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Mounting Type	Current - DC Forward (If) (Max) [Max]	Output Type	Supplier Device Package	Input Type	Current - Output / Channel
Lumex Opto/Components Inc. OCP-PCP116-TR	0	1	50 ns	100 ns	-25 °C	85 °C	6-SMD, Gull Wing	1	9 µs	15 µs	Surface Mount	50 mA	Open Collector	6-SMD	DC	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Logic Output Optoisolator Open Collector 5000Vrms 1 Channel CMTI 6-SMD
