7282-5SG-300
ActiveConxall/Switchcraft

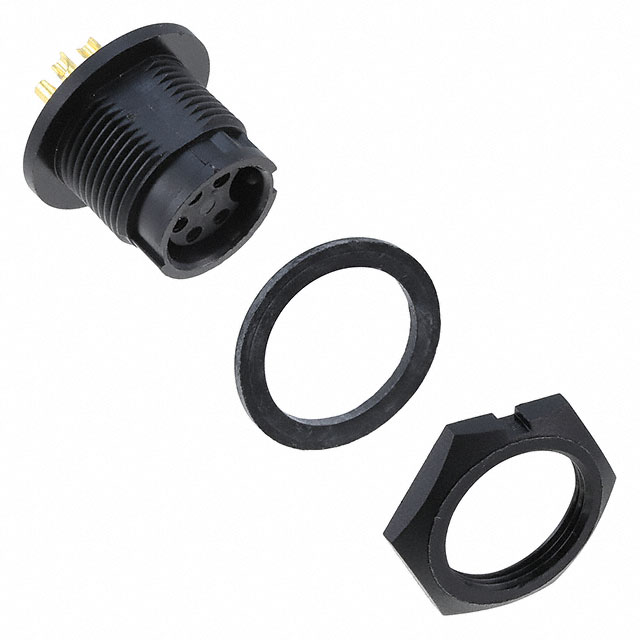

CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
7282-5SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7282-5SG-300 | 7282-5SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
7282-5SG Series
CONN RCPT FMALE 5P GOLD SLDR CUP
| Part | Ingress Protection | Color | Contact Material | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Connector Type | Current Rating (Amps) | Mounting Feature | Fastening Type | Applications | Backshell Material, Plating | Orientation | Shielding | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 7282-5SG-3ES | Weathertight | Black | Brass | Gold | -40 °C | 115 °C | Plastic | Receptacle, Female Sockets | Varies by Wire Gauge | Bulkhead - Front Side Nut | Bayonet Lock | Automotive, Communication Systems, Instrumentation | Nylon, Polyamide (PA) | Keyed | Unshielded | 600 V |
Conxall/Switchcraft 7282-5SG-300 | Weathertight | Black | Brass | Gold | -40 °C | 115 °C | Plastic | Receptacle, Female Sockets | Varies by Wire Gauge | Bulkhead - Front Side Nut | Bayonet Lock | Automotive, Communication Systems, Instrumentation | Nylon, Polyamide (PA) | Keyed | Unshielded | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.27 | |
| 10 | $ 10.87 | |||
| 100 | $ 9.48 | |||
| 1000 | $ 7.42 | |||
Description
General part information
7282-5SG Series
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
