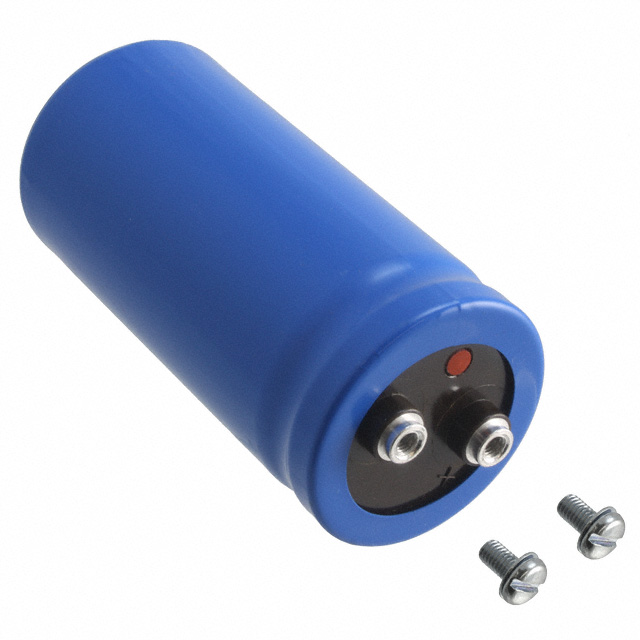

500C153M250DP2E
ActiveCornell Dubilier Knowles
CAP ALUM 15000UF 20% 250V SCREW
500C153M250DP2E
ActiveCornell Dubilier Knowles
CAP ALUM 15000UF 20% 250V SCREW
Description
General part information
500C153M250DP2E
15000 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 500C153M250DP2E |
|---|---|
| Applications | General Purpose |
| Capacitance | 15000 µF |
| Height - Seated (Max) | 5.937 in |
| Lead Spacing | 1.25 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 3 in |
| Tolerance | 20 % |
| Voltage - Rated | 250 V |
