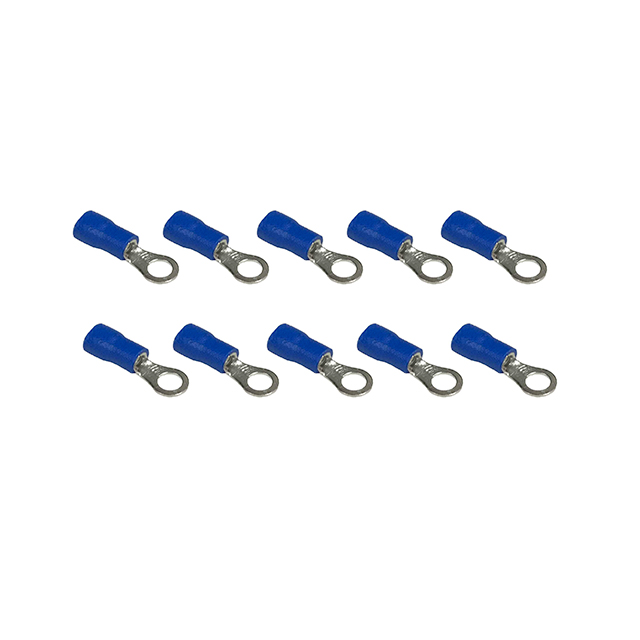

RVS2-5-10
ActiveRemington Industries
RING TERMINALS, PVC INSULATED, 1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RVS2-5-10
ActiveRemington Industries
RING TERMINALS, PVC INSULATED, 1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RVS2-5-10 | RVS2 Series |
|---|---|---|
| Color | Blue | Blue |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Copper |
| Insulation | Insulated | Insulated |
| Length - Overall | 21.79 mm | 21.79 mm |
| Length - Overall | 0.858 in | 0.858 in |
| Length - Overall | - | 0.701 in |
| Length - Overall | - | 17.81 mm |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud | 6 - 10 Stud |
| Stud/Tab Size | - | 8 Stud |
| Terminal Type | Circular | Circular |
| Termination | Crimp | Crimp |
| Thickness | 0.81 mm | 0.81 mm |
| Thickness | 0.032 in | 0.032 in |
| Width - Outer Edges [y] | 8.51 mm | 5.5 - 8.51 mm |
| Width - Outer Edges [y] | 0.335 in | 0.217 - 0.335 in |
RVS2 Series
RING TERMINALS, PVC INSULATED, 1
| Part | Color | Terminal Type | Contact Finish | Width - Outer Edges [y] | Width - Outer Edges [y] | Thickness | Thickness | Length - Overall | Length - Overall | Stud/Tab Size | Termination | Insulation | Mounting Type | Contact Material | Material - Insulation | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Remington Industries RVS2-5-100 | Blue | Circular | Tin | 8.51 mm | 0.335 in | 0.81 mm | 0.032 in | 21.79 mm | 0.858 in | 10 Stud | Crimp | Insulated | Free Hanging (In-Line) | Copper | Poly-Vinyl Chloride (PVC) | |||
Remington Industries RVS2-4-100 | Blue | Circular | Tin | 6.6 mm | 0.26 in | 0.81 mm | 0.032 in | Crimp | Insulated | Free Hanging (In-Line) | Copper | Poly-Vinyl Chloride (PVC) | 8 Stud | 0.701 in | 17.81 mm | |||
Remington Industries RVS2-5-10 | Blue | Circular | Tin | 8.51 mm | 0.335 in | 0.81 mm | 0.032 in | 21.79 mm | 0.858 in | 10 Stud | Crimp | Insulated | Free Hanging (In-Line) | Copper | Poly-Vinyl Chloride (PVC) | |||
Remington Industries RVS2-4-10 | Blue | Circular | Tin | 6.6 mm | 0.26 in | 0.81 mm | 0.032 in | Crimp | Insulated | Free Hanging (In-Line) | Copper | Poly-Vinyl Chloride (PVC) | 8 Stud | 0.701 in | 17.81 mm | |||
Remington Industries RVS2-3.5-100 | Blue | Circular | Tin | 5.5 mm | 0.217 in | 0.81 mm | 0.032 in | 6 Stud | Crimp | Insulated | Free Hanging (In-Line) | Copper | Poly-Vinyl Chloride (PVC) | 0.701 in | 17.81 mm | |||
Remington Industries RVS2-3.5-10 | Blue | Circular | Tin | 5.5 mm | 0.217 in | 0.81 mm | 0.032 in | 6 Stud | Crimp | Insulated | Free Hanging (In-Line) | Copper | Poly-Vinyl Chloride (PVC) | 0.701 in | 17.81 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RVS2 Series
Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
