25072 BK199

Active

ALPHA WIRE

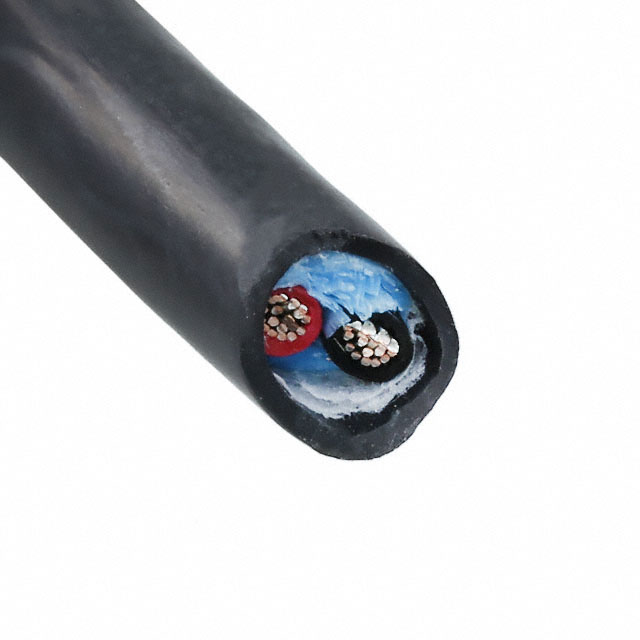

CABLE 2COND 16AWG BLACK FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 16AWG BLACK FEET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	25072 BK199	25072 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19	19
Conductor Strand [custom]	0.0117 in	0.0117 in
Features	Rip Cord, Biological Compatibility	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.25 "	0.25 "
Jacket (Insulation) Diameter [diameter]	6.35 mm	6.35 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	2	2
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Spool Size	1000 ft	1000 ft
Spool Size	304.8 m	304.8 m
Voltage	300 V	300 V
Wire Gauge	16 AWG	16 AWG

CABLE 2COND 16AWG BLACK FEET

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Voltage	Length	Wire Gauge	Features	Jacket (Insulation) Material	Cable Type	Conductor Insulation	Spool Size	Spool Size	Ratings	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
ALPHA WIRE 25072 BK199	0.25 "	6.35 mm	2	300 V	Enter Number of Feet in Order Quantity	16 AWG	Biological Compatibility, Rip Cord	Polyurethane (PU)	Multi-Conductor	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	ISO 10993, UL Style 20668	Black	19	0.0117 in	Copper, Tinned	-30 ░C	90 °C
ALPHA WIRE 25072 BK005	0.25 "	6.35 mm	2	300 V		16 AWG	Biological Compatibility, Rip Cord	Polyurethane (PU)	Multi-Conductor	Poly-Vinyl Chloride (PVC)			ISO 10993, UL Style 20668	Black	19	0.0117 in	Copper, Tinned	-30 ░C	90 °C	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black 16 AWG Enter Number of Feet in Order Quantity
