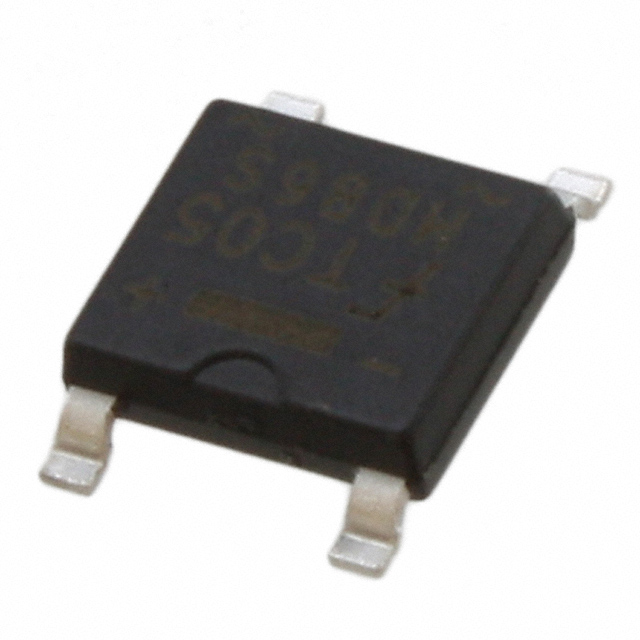

MDB6S
ActiveON Semiconductor
BRIDGE RECTIFIER, SINGLE PHASE, 600 V, 1 A, MICRO DIP, 4 PINS, 1.1 V
MDB6S
ActiveON Semiconductor
BRIDGE RECTIFIER, SINGLE PHASE, 600 V, 1 A, MICRO DIP, 4 PINS, 1.1 V
Description
General part information
MDB6S Series
1A, 600V, MicroDIP, Single-Phase Bridge Rectifier
Technical Specifications
Parameters and characteristics for this part
| Specification | MDB6S |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage | 10 µA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4-SMD, Gull Wing |
| Package Name | 4-MicroDIP/SMD |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 1.1 V |
| Voltage - Peak Reverse (Max) | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
