LF2B-D3P-ATHWW2-1M

Active

IDEC Corporation

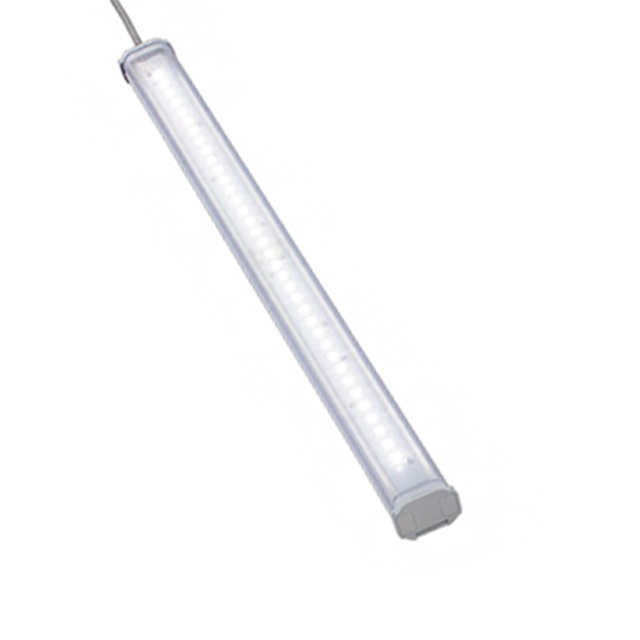

LED LIGHT BAR, COOL WHITE, 935 LM, 7.8 W, 240 VAC, 580 MM, IP65

Search across all available documentation for this part.

Active

IDEC Corporation

LED LIGHT BAR, COOL WHITE, 935 LM, 7.8 W, 240 VAC, 580 MM, IP65

Technical Specifications

Parameters and characteristics for this part

Specification	LF2B-D3P-ATHWW2-1M

Approval Agency	cULus, CE
Housing Material	Polycarbonate (PC)
Illumination Color	White, Cool
Ingress Protection	IP65 - Dust Tight, Water Resistant
Length	22.83 "
Length	580 mm
Lens Type	Flat, Clear
Luminous Flux	720 lm
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-30 ░C
Power - Rated	7.8 W
Profile (W x H) [x]	1.57 in
Profile (W x H) [x]	40 mm
Profile (W x H) [y]	29 mm
Profile (W x H) [y]	1.14 in
Rated Life	40000 Hours
Termination Style	Cable Leads
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

LED LIGHT BAR, COOL WHITE, 935 LM, 7.8 W, 240 VAC, 580 MM, IP65

Part	Rated Life	Voltage - Supply [Min]	Voltage - Supply [Max]	Illumination Color	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Power - Rated	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Length	Length	Termination Style	Lens Type	Housing Material	Luminous Flux
IDEC Corporation LF2B-D3P-ATHWW2-1M	40000 Hours	100 VAC	240 VAC	Cool, White	1.57 in	29 mm	40 mm	1.14 in	7.8 W	IP65 - Dust Tight, Water Resistant	55 °C	-30 ░C	CE, cULus	22.83 "	580 mm	Cable Leads	Clear, Flat	Polycarbonate (PC)	720 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 114.66
Newark	Each	1	$ 150.25
