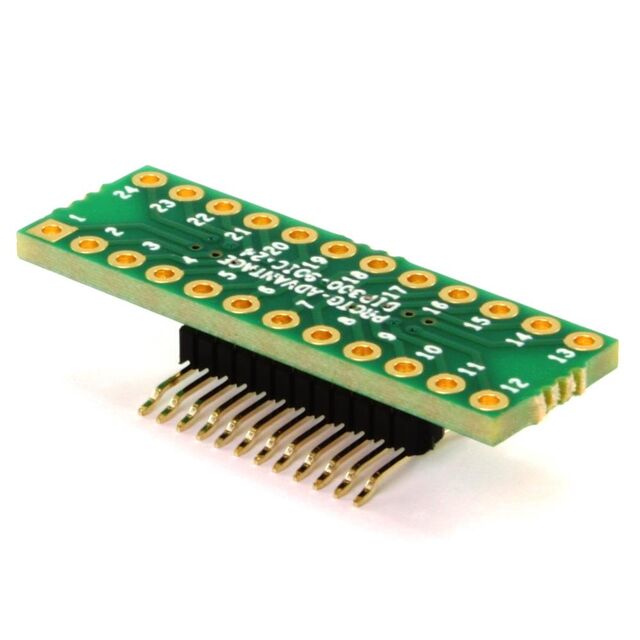

DIP300-SOIC-24W
ActiveChip Quik Inc.
DIP-24 (0.3" WIDTH, 0.1" PITCH)
DIP300-SOIC-24W
ActiveChip Quik Inc.
DIP-24 (0.3" WIDTH, 0.1" PITCH)
Description
General part information
DIP300-SOIC-24W
DIP-24 (0.3" WIDTH, 0.1" PITCH)
Technical Specifications
Parameters and characteristics for this part
| Specification | DIP300-SOIC-24W |
|---|---|
| Board Thickness | 0.063 in |
| Material | FR4 Epoxy Glass |
| Number of Positions | 24 pos |
| Package Accepted | SOIC |
| Pitch | 0.05 in |
| Proto Board Type | SMD, DIP |
| Size / Dimension Length | 1.2 in |
| Size / Dimension Width | 0.4 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
