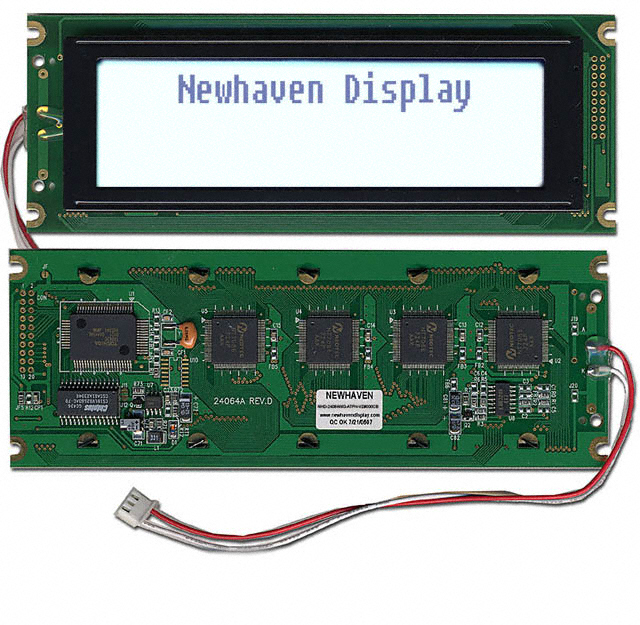

NHD-24064WG-ATFH-VZ#000CB

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 240X64 WH TRANSFL

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 240X64 WH TRANSFL

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-24064WG-ATFH-VZ#000CB

Background Color	White
Background Color	Black
Backlight	LED - White
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.53 mm
Dot Pitch [y]	0.53 mm
Dot Pixels [x]	240 pixels
Dot Pixels [y]	64
Dot Size [custom]	0.49 mm
Dot Size [custom]	0.49 mm
Graphics Color	Black
Interface	Parallel, 8-Bit
Viewing Area [x]	133 mm
Viewing Area [y]	39 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transflective Black (White - Inverted) FSTN - Film Super-Twisted Nematic Parallel, 8-Bit 240 x 64
