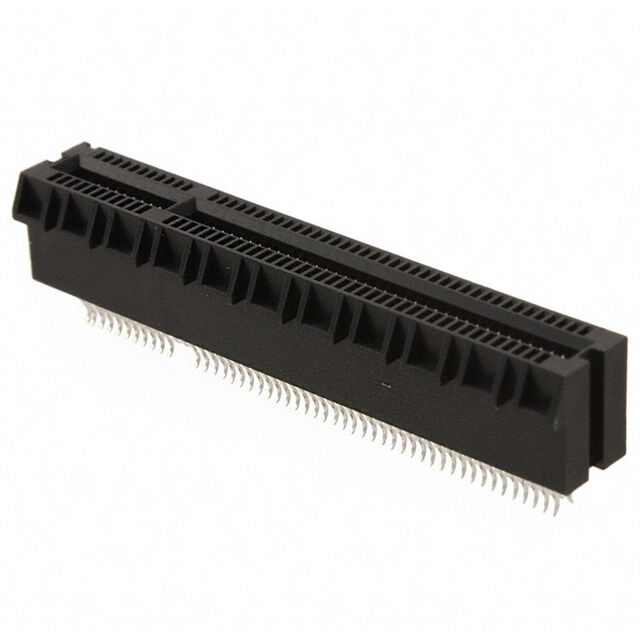

NWE49DHRN-T941

Obsolete

Sullins Connector Solutions

CONN PCI EXP FMALE 98POS 0.039

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN PCI EXP FMALE 98POS 0.039

Technical Specifications

Parameters and characteristics for this part

Specification	NWE49DHRN-T941

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Contact Type	Cantilever
Features	Locking Ramp, Card Extender
Gender	Female
Material - Insulation	Polyamide (PA46), Nylon 4/6
Mounting Type	Board Edge, Straddle Mount
Number of Positions	98
Number of Positions/Bay/Row [custom]	38
Number of Positions/Bay/Row [custom]	11
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

Part	Contact Type	Card Type	Number of Rows	Features	Color	Card Thickness	Card Thickness	Termination	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Material	Contact Finish	Mounting Type	Read Out	Pitch [x]	Pitch [x]	Contact Finish Thickness	Gender	Material - Insulation
Sullins Connector Solutions NWE49DHRN-T941	Cantilever	PCI Express™	2	Card Extender Locking Ramp	Black	0.062 in	1.57 mm	Solder	38	11	105 ░C	-55 °C	98	Phosphor Bronze	Gold	Board Edge Straddle Mount	Dual	0.039 in	1 mm	Flash	Female	Nylon 4/6 Polyamide (PA46)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

98 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
