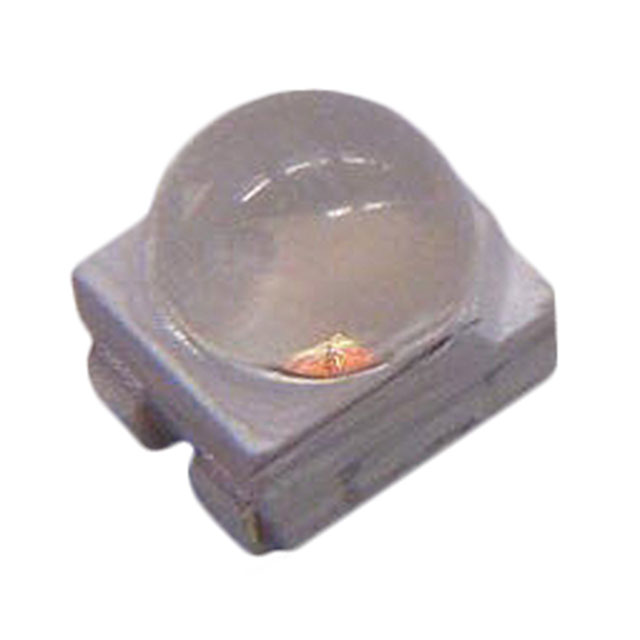

CLM2B-AEW-CYBB0263

Active

Cree LED

LED AMBER DIFFUSED 4PLCC SMD

Search across all available documentation for this part.

Active

Cree LED

LED AMBER DIFFUSED 4PLCC SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED AMBER DIFFUSED 4PLCC SMD

Part	Voltage - Forward (Vf) (Typ)	Package / Case	Configuration	Lens Style	Millicandela Rating	Lens Transparency	Lens Size [diameter]	Mounting Type	Wavelength - Dominant	Current - Test	Height (Max) [Max]	Supplier Device Package	Color	Height (Max) [Max] [z]	Lens Size [y]	Lens Size [x]	Size / Dimension [y]	Size / Dimension [x]
Cree LED CLM2B-AEW-CYBB0263	2.5 V	4-SMD, J-Lead	Standard	Round with Domed Top	6275 mcd	Diffused	2.6 mm	Surface Mount	591 nm	50 mA	3.55 mm	4-PLCC	Amber
Cree LED CLM2B-RTW-CA0B0BB3	2.6 V	4-PLCC		Round with Domed Top	7000 mcd	Diffused		Surface Mount	621 nm	50 mA		4-PLCC	Red	3.65 mm	2.8 mm	3.2 mm	2.8 mm	3.2 mm
Cree LED CLM2B-ATW-CA0B0EF3	2.8 V	4-PLCC		Round with Domed Top	7000 mcd	Diffused		Surface Mount	591 nm	50 mA		4-PLCC	Amber	3.65 mm	2.8 mm	3.2 mm	2.8 mm	3.2 mm
Cree LED CLM2B-ATW-CZ0B0EF3	2.8 V	4-PLCC		Round with Domed Top	7000 mcd	Diffused		Surface Mount	591 nm	50 mA		4-PLCC	Amber	3.65 mm	2.8 mm	3.2 mm	2.8 mm	3.2 mm
Cree LED CLM2B-RTW-CZ0B0BB3	2.6 V	4-PLCC		Round with Domed Top	7000 mcd	Diffused		Surface Mount	621 nm	50 mA		4-PLCC	Red	3.65 mm	2.8 mm	3.2 mm	2.8 mm	3.2 mm
Cree LED CLM2B-AEW-CZ0B0353	2.5 V	4-SMD, J-Lead	Standard	Round with Domed Top	6750 mcd	Diffused	2.6 mm	Surface Mount	591 nm	50 mA	3.55 mm	4-PLCC	Amber

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amber 591nm LED Indication - Discrete 2.5V 4-SMD, J-Lead
