Description

General part information

VLQ24593BN4N-518B

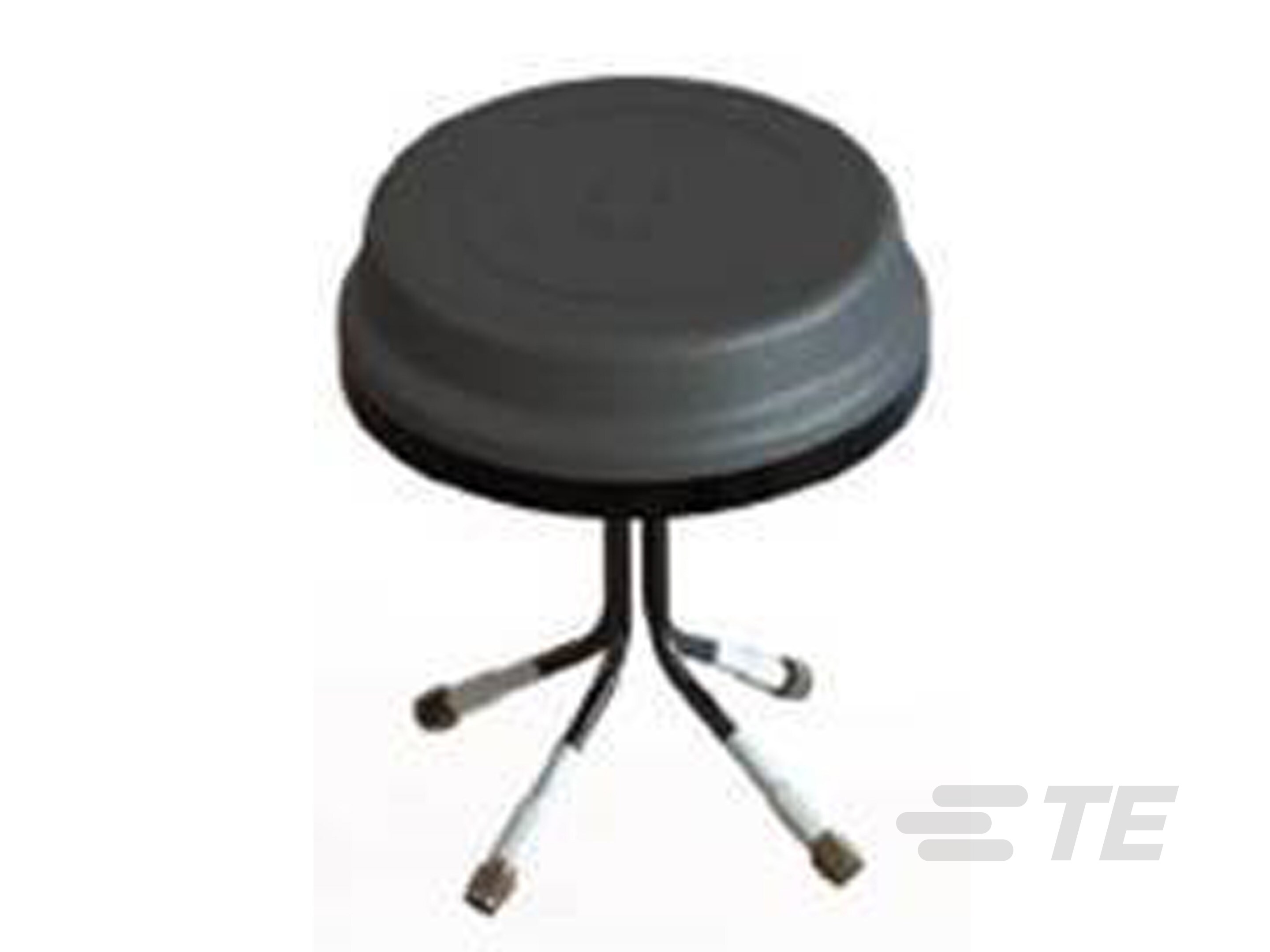

Dome/Puck Antenna, Dual Band, Vehicular / Wi-Fi, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Multiple Ports, > 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationVLQ24593BN4N-518B
Antenna TypePuck
ApplicationsWi-Fi
FeaturesCable, 5.18M
Frequency (Band)5.4 GHz
Frequency (Center)2.4 GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.5 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.925 GHz
Frequency Range (Band 2) Minimum4.9 GHz
Gain2.2 dBi, 3.5 dBi
Height (Max)1.52 in
Ingress ProtectionIP67
Mounting TypePanel Mount
Number of Bands2
Power - Max10 VA
RF Family/StandardWiFi
Termination Count (SMA Male)4
Termination TypeRP-SMA Male
VSWR2
