1241.7221.1120000
ObsoleteSCHURTER Inc.
MSM19 SWITCH LA NO DPST 12A S0 N
1241.7221.1120000
ObsoleteSCHURTER Inc.
MSM19 SWITCH LA NO DPST 12A S0 N
Description
General part information
1241.7221.1120000

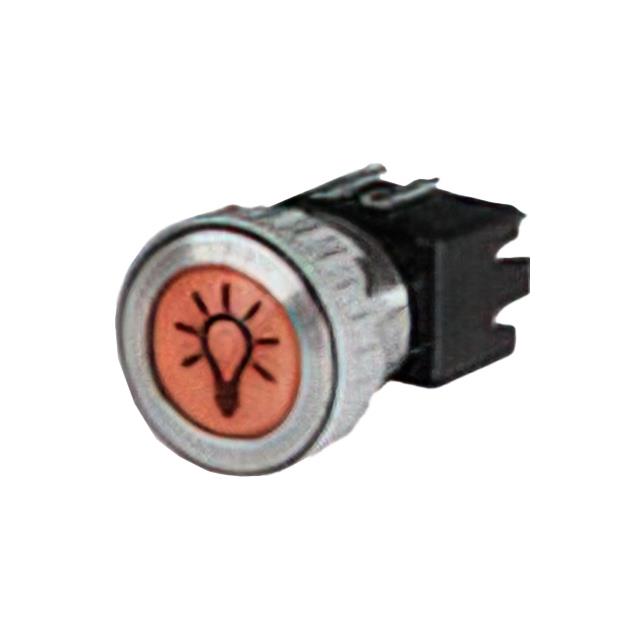

Pushbutton Switch DPST Anti-Vandal Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241.7221.1120000 |
|---|---|
| Actuator Type | Button, Round |
| Circuit | DPST |
| Color - Actuator/Cap | Silver |
| Current Rating | 12 A |
| Electrical Life (Cycles) | 50000 |
| Ingress Protection Description | Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP64 |
| Mechanical Life (Cycles) | 100000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Diameter | 19.1 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.187") | 0.187 in |
| Switch Function | Off-On |
| Termination Style | Quick Connect |
| Type | Anti-Vandal |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 30 V |
