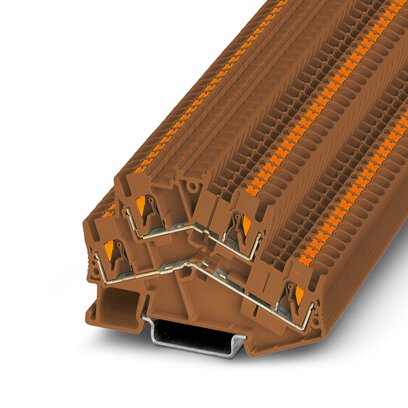

1037088
LTBPhoenix Contact
DOUBLE-LEVEL TERM BLOCK PUSH IN
1037088
LTBPhoenix Contact
DOUBLE-LEVEL TERM BLOCK PUSH IN
Description
General part information
1037088
Terminal Block Connector 4 Position Feed Through Brown 12-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 1037088 |
|---|---|
| Color | Brown |
| Current - IEC | 22 A |
| Current - UL | 20 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length (Max) | 10 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
