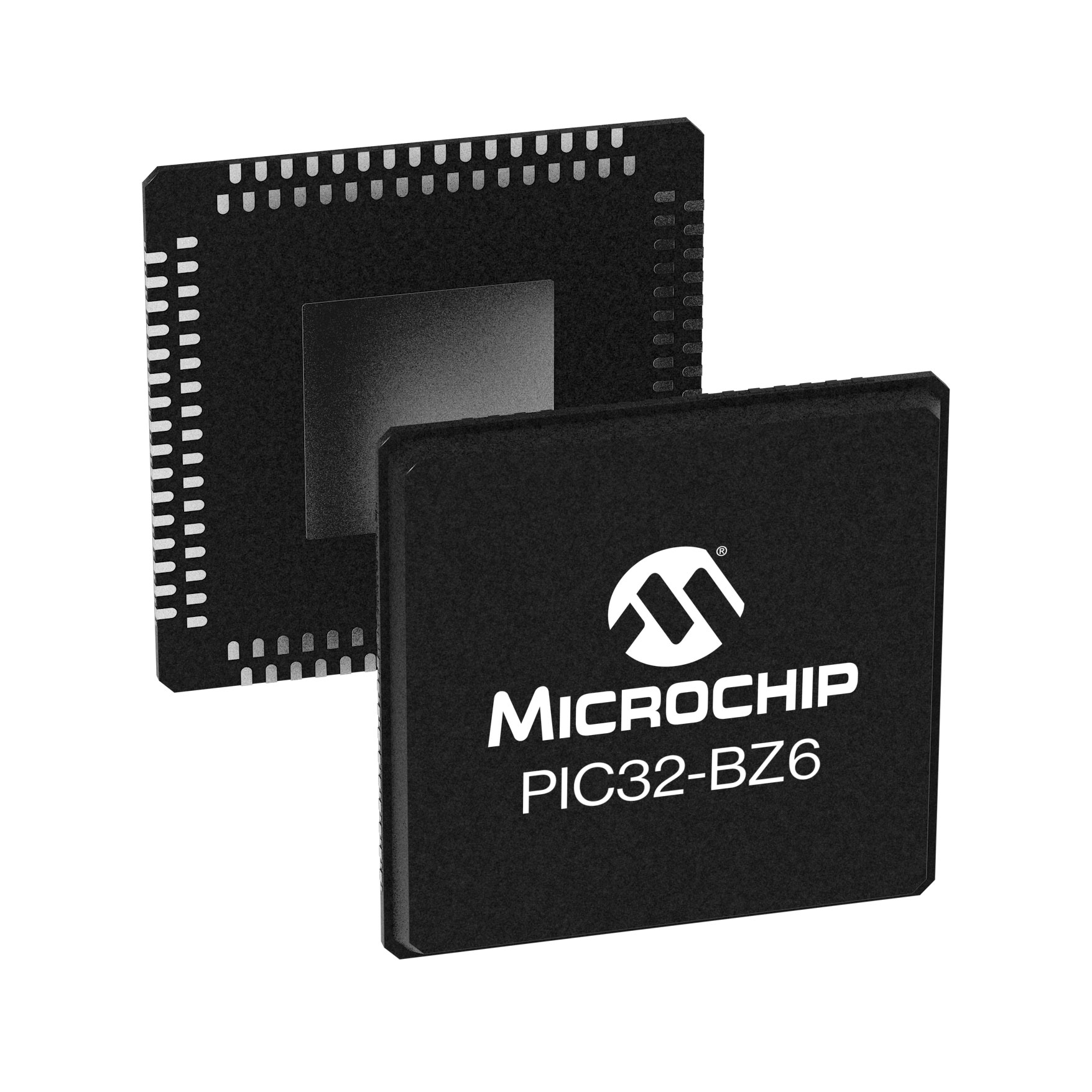

Specification	PIC32CX2051BZ62132-E/3WW

Current - Receiving (Max)	31.1 mA
Current - Receiving (Min)	8.7 mA
Current - Transmitting (Max)	62.1 mA
Current - Transmitting (Min)	11.3 mA
Data Rate (Max)	2 MBaud
Frequency	2.4 GHz
GPIO Count	54
Grade	Automotive
Memory Size (Flash)	2 MB
Memory Size (SRAM)	512 kB
Memory Type	Flash, SRAM
Modulation	GFSK, O-QPSK
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	132-VFQFN Dual Rows, Exposed Pad
Package Length	10 mm
Package Name	132-DQFN
Package Width	10 mm
Power - Output	11 dBm
Protocol	Zigbee®, Bluetooth v6.0, Thread
Qualification	AEC-Q100
RF Family/Standard	802.15.4, Bluetooth
Sensitivity	-108 dBm
Serial Interfaces	USART, UART, I2C, PWM, CANbus, JTAG, HCI, IrDA, GPIO, SPI, ADC
Type	TxRx + MCU
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	1.9 V
