2-87499-8

Active

TE Connectivity AMP Connectors

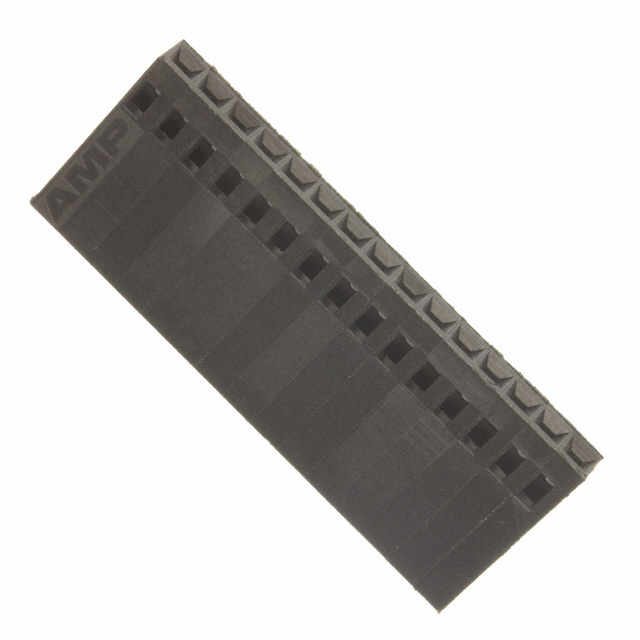

CONN RCPT HSG 15POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-87499-8

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 15POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-87499-8	87499 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Male or Female	Male or Female
Insulation Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	15	2 - 36
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

87499 Series

CONN RCPT HSG 11POS 2.54MM

Part	Contact Termination	Color	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Note	Mounting Type	Contact Type	Insulation Material
TE Connectivity AMP Connectors 2-87499-0	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	11	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 2-87499-6	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	14	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 2-87499-8	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	15	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 4-87499-0	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	21	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 3-87499-4	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	18	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 2-87499-4	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	13	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 5-87499-4	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	28	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 3-87499-7	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	20	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 87499-3	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	2	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 5-87499-8	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	30	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.96

Description

General part information

87499 Series

15 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
