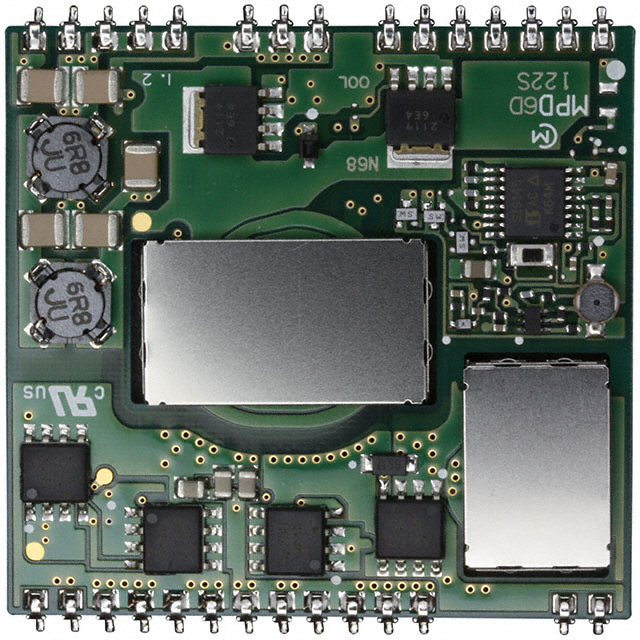

MPD6D122S
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 1.2V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPD6D122S
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 1.2V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MPD6D122S | MPD6D Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | - | Active Low, Enable |
| Current - Output (Max) [Max] | 12 A | 2 - 800 A |
| Efficiency | 84 % | 79 - 92 % |
| Features | - | OCP, OVP, Remote On/Off, OTP |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 29 Leads | 29 Leads |
| Package / Case | 34-SMD Module | 17 Leads, 20-SMD Module, 18-SMD Module, 15 Leads, 34-SMD Module |
| Power (Watts) | 30 W | 10 - 33 W |
| Size / Dimension | - | 31.2 mm |
| Size / Dimension | - | 4.2 mm |
| Size / Dimension [x] | 45 mm | 37.3 - 45 mm |
| Size / Dimension [x] | 1.77 in | 1.47 - 1.77 " |
| Size / Dimension [y] | 1.67 " | 0.88 - 1.67 " |
| Size / Dimension [y] | 42.4 mm | 22.4 - 42.4 mm |
| Size / Dimension [z] | 4.4 mm | 4.2 - 4.4 mm |
| Size / Dimension [z] | 0.17 in | 0.17 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 36 V | 18 - 36 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 1.2 V | 1.2 - 12 V |
MPD6D Series
DC DC CONVERTER 5.5V 33W
| Part | Voltage - Input (Max) [Max] | Package / Case | Applications | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Output 1 | Control Features | Type | Number of Outputs | Mounting Type | Features | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MPD6D209S | 36 V | 17 Leads, 20-SMD Module | ITE (Commercial) | 91 % | 85 °C | -40 °C | 33 W | 5.5 V | Active Low, Enable | Isolated Module | 1 | Surface Mount | OCP, OVP, Remote On/Off | 6 A | 18 V | 1.5 kV | |||||||||
Murata Power Solutions Inc. MPD6D101S | 75 V | 18-SMD Module, 15 Leads | ITE (Commercial) | 88 % | 85 °C | -40 °C | 10 W | 12 V | Active Low, Enable | Isolated Module | 1 | Surface Mount | OCP, OVP, Remote On/Off | 800 mA | 36 V | 1.5 kV | 0.88 " | 0.17 in | 1.47 " | 37.3 mm | 22.4 mm | 4.2 mm | |||
Murata Power Solutions Inc. MPD6D108S | 75 V | 18-SMD Module, 15 Leads | ITE (Commercial) | 89 % | 85 °C | -40 °C | 10 W | 5 V | Active Low, Enable | Isolated Module | 1 | Surface Mount | OCP, OVP, Remote On/Off | 2 A | 36 V | 1.5 kV | 0.88 " | 0.17 in | 1.47 " | 37.3 mm | 22.4 mm | 4.2 mm | |||
Murata Power Solutions Inc. MPD6D104S | 75 V | 18-SMD Module, 15 Leads | ITE (Commercial) | 86 % | 85 °C | -40 °C | 10 W | 1.8 V | Active Low, Enable | Isolated Module | 1 | Surface Mount | OCP, OVP, Remote On/Off | 3 A | 36 V | 1.5 kV | 0.88 " | 0.17 in | 1.47 " | 37.3 mm | 22.4 mm | 4.2 mm | |||
Murata Power Solutions Inc. MPD6D128S | 75 V | 34-SMD Module | ITE (Commercial) | 92 % | 85 °C | -40 °C | 30 W | 5 V | Isolated Module | 1 | Surface Mount | 6 A | 36 V | 1.5 kV | 1.67 " | 0.17 in | 1.77 in | 45 mm | 42.4 mm | 4.4 mm | 29 Leads | ||||
Murata Power Solutions Inc. MPD6D117S | 75 V | 17 Leads, 20-SMD Module | ITE (Commercial) | 90 % | 85 °C | -40 °C | 15 W | 3.3 V | Active Low, Enable | Isolated Module | 1 | Surface Mount | OCP, OTP, OVP, Remote On/Off | 4.5 A | 36 V | 1.5 kV | 1.23 in | 0.17 in | 1.47 " | 37.3 mm | 31.2 mm | 4.2 mm | |||
Murata Power Solutions Inc. MPD6D122S | 75 V | 34-SMD Module | ITE (Commercial) | 84 % | 85 °C | -40 °C | 30 W | 1.2 V | Isolated Module | 1 | Surface Mount | 12 A | 36 V | 1.5 kV | 1.67 " | 0.17 in | 1.77 in | 45 mm | 42.4 mm | 4.4 mm | 29 Leads | ||||
Murata Power Solutions Inc. MPD6D102S | 75 V | 18-SMD Module, 15 Leads | ITE (Commercial) | 79 % | 85 °C | -40 °C | 10 W | 1.2 V | Active Low, Enable | Isolated Module | 1 | Surface Mount | OCP, OVP, Remote On/Off | 3.5 A | 36 V | 1.5 kV | 0.88 " | 0.17 in | 1.47 " | 37.3 mm | 22.4 mm | 4.2 mm | |||
Murata Power Solutions Inc. MPD6D127S | 75 V | 34-SMD Module | ITE (Commercial) | 91 % | 85 °C | -40 °C | 30 W | 3.3 V | Isolated Module | 1 | Surface Mount | 36 V | 1.5 kV | 1.67 " | 0.17 in | 1.77 in | 45 mm | 42.4 mm | 4.4 mm | 29 Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPD6D Series
Isolated Module DC DC Converter 1 Output 1.2V 12A 36V - 75V Input
