EGG.00.304.CYM

Active

LEMO

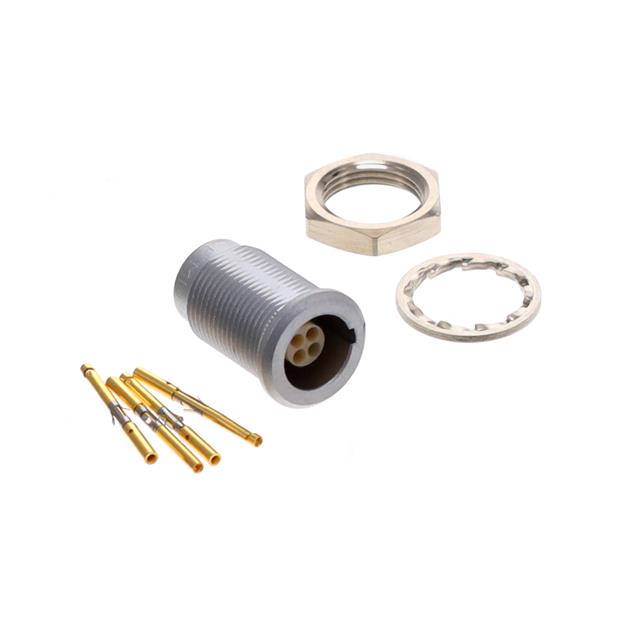

CONN RCPT FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.00.304.CYM	EGG.00.304 Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Female Sockets, Insert
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Features	-	Insert Only, Requires Shell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	4	4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	304
Shielding	Shielded	Shielded
Termination	Crimp	Crimp, Solder

CONN RCPT FMALE 4POS GOLD CRIMP

Part	Current Rating (Amps)	Shell Finish	Number of Positions	Contact Material	Mounting Feature	Fastening Type	Primary Material	Material Flammability Rating	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Shell Size - Insert	Ingress Protection	Shell Material	Contact Finish - Mating	Insert Material	Shielding	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Features
LEMO EGG.00.304.CYM	2 A	Chrome	4	Bronze	Bulkhead - Rear Side Nut	Push-Pull	Metal	UL94 V-0	G	59 Áin	1.5 Ám	Crimp	304	IP50	Brass	Gold	Polyetheretherketone (PEEK)	Shielded	Receptacle, Female Sockets	-55 °C	250 °C	Silver
LEMO EGG.00.304.CLN	2 A	Chrome	4	Bronze	Bulkhead - Rear Side Nut	Push-Pull	Metal	UL94 V-0	G	59 Áin	1.5 Ám	Solder	304	IP50	Brass	Gold	Polyetheretherketone (PEEK)	Shielded	Receptacle, Female Sockets	-55 °C	250 °C	Silver	Panel Mount, Through Hole
LEMO EGG.00.304.CLL	2 A	Chrome	4	Bronze	Bulkhead - Rear Side Nut	Push-Pull	Metal	UL94 V-0	G	59 Áin	1.5 Ám		304	IP50	Brass	Gold	Polyetheretherketone (PEEK)	Shielded	Receptacle, Female Sockets	-55 °C	250 °C	Silver
LEMO EGG.00.304.ZLL	2 A		4	Bronze				UL94 V-0	G	59 Áin	1.5 Ám		304	IP50		Gold	Polyetheretherketone (PEEK)	Shielded	Female Sockets, Insert	-55 °C	250 °C			Insert Only, Requires Shell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.75

General part information

4 Position Circular Connector Receptacle, Female Sockets Crimp
