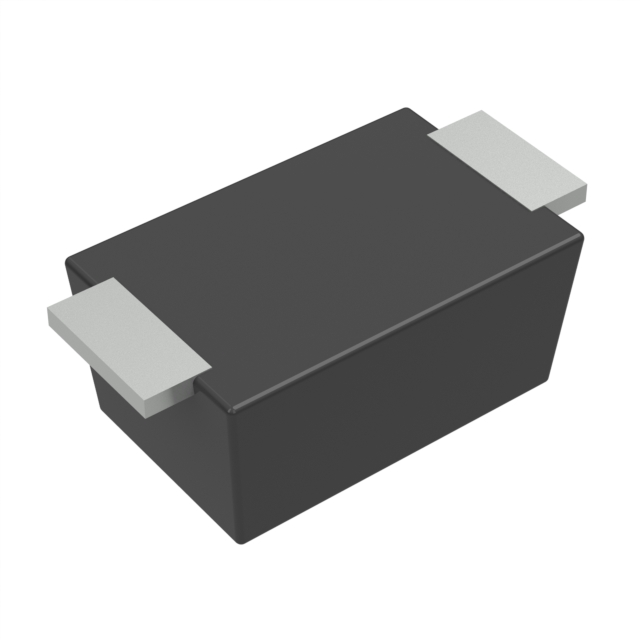

US1GFA

Active

ON Semiconductor

400V 1A HIGH EFFICIENCY RECTIFIER TRR=50NS IN SOD-123FA

Search across all available documentation for this part.

Active

ON Semiconductor

400V 1A HIGH EFFICIENCY RECTIFIER TRR=50NS IN SOD-123FA

Technical Specifications

Parameters and characteristics for this part

Specification	US1GFA

Capacitance @ Vr, F	20 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123F
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123FL
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Super Fast Surface Mount Rectifiers

Part	Current - Average Rectified (Io)	Mounting Type	Supplier Device Package	Package / Case	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Reverse Leakage @ Vr	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
ON Semiconductor US1GFA	1 A	Surface Mount	SOD-123FL	SOD-123F	50 ns	1.3 V	Standard	5 µA	200 mA, 500 ns	400 V	20 pF	150 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Super Fast Surface Mount Rectifiers
