Y148016R0000A9L
ActiveVPG Foil Resistors
VPR247Z 16R000 0.05%
Y148016R0000A9L
ActiveVPG Foil Resistors
VPR247Z 16R000 0.05%
Description
General part information
Y148016R0000A9L

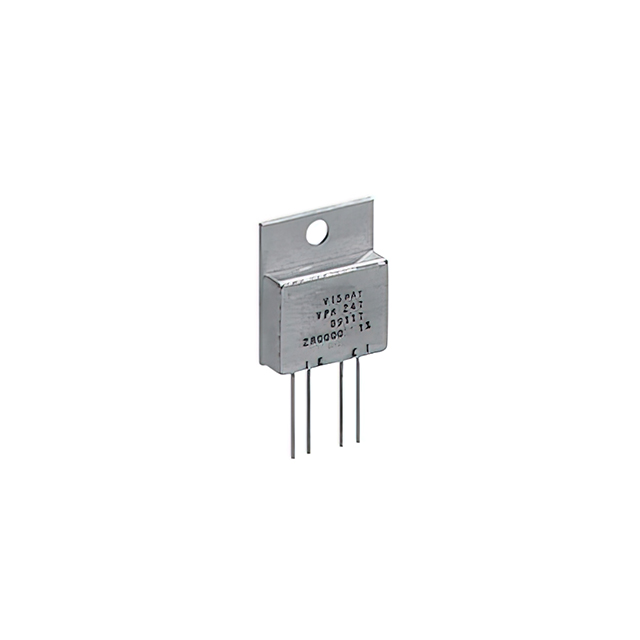

16 Ohms ±0.05% 10W Through Hole Resistor Radial - 4 Leads Current Sense, Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y148016R0000A9L |
|---|---|
| Composition | Metal Foil |
| Features | Current Sense, Non-Inductive |
| Height - Seated (Max) | 0.835 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Radial - 4 Leads |
| Power (Watts) | 10 W |
| Resistance | 16 Ohm |
| Size / Dimension Length | 0.69 in |
| Size / Dimension Width | 0.215 in |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 0.05 % |
