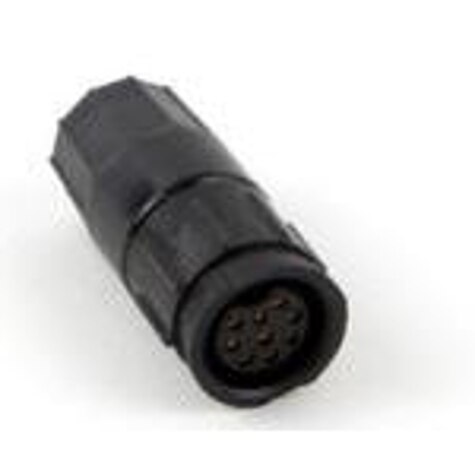

Specification	5382-4SG-315

Backshell Material, Plating	Nylon, Polyamide (PA)
Cable Opening (Max)	0.17 in
Cable Opening (Min)	0.15 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	600 V

Multi-Con-X Series

...

Part	Cable Opening (Min)	Cable Opening (Max)	Color	Voltage Rating	Voltage Rating (Type)	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Current Rating	Number of Positions	Backshell Material, Plating	Contact Finish - Mating	Features	Primary Material	Insert Material	Fastening Type	Orientation	Shielding	Mounting Type	Shell Material	Contact Material	Connector Type	Termination	Material Flammability Rating	Shell Finish	Cable Opening	Ingress Protection	Mounting Feature
SWITCHCRAFT/CONXALL W5280-8PG-P-518	0.18 in	0.2 in	Black	600 V	DC	-40 °C	85 °C	Dust Tight Waterproof	IP67	0 A	Varies by Wire Gauge	8	Thermoplastic	Gold	Backshell UV Resistant	Plastic	Thermoplastic	Bayonet Lock	Keyed	Unshielded	Free Hanging (In-Line)	Thermoplastic	Copper Alloy	Male Pins Plug	Crimp	UL94 HB
SWITCHCRAFT/CONXALL W5282-12SG-321			Black	600 V				Dust Tight Waterproof	IP67			12	Thermoplastic	Gold	Backshell	Plastic	Thermoplastic	Bayonet Lock	E	Unshielded	Free Hanging (In-Line)	Thermoplastic	Brass	Female Sockets Receptacle	Solder Cup
SWITCHCRAFT/CONXALL W5282-11SG-524	0.24 in	0.27 in	Black	600 V				Dust Tight Waterproof	IP67			11		Gold	Backshell Cable Clamp	Plastic		Bayonet Lock	E	Unshielded	Free Hanging (In-Line)	Thermoplastic		Female Sockets Receptacle	Solder Cup
SWITCHCRAFT/CONXALL SF3282-7ASG-540			Black Silver	600 V	DC	-40 °C	85 °C	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	13 A		7	Polybutylene Terephthalate (PBT)	Gold	Backshell Cable Clamp Coupling Nut	Metal	PBT Polybutylene Terephthalate	Threaded	Keyed	Shielded	Free Hanging (In-Line)	Brass	Brass	Female Sockets Plug	Solder Cup		Nickel	0.4 in
SWITCHCRAFT/CONXALL 3380-5SG-521	0.21 in	0.23 in	Black	600 V		-40 °C	115 °C					5	Nylon Polyamide (PA)	Gold	Backshell Cable Clamp	Plastic		Bayonet Lock	Keyed	Unshielded	Free Hanging (In-Line)	Nylon Polyamide (PA)	Brass	Female Sockets Plug	Crimp				Weathertight
SWITCHCRAFT/CONXALL W5280-12SG-530	0.3 in	0.32 in	Black	600 V				Dust Tight Waterproof	IP67			12	Thermoplastic	Gold	Backshell Cable Clamp	Plastic	Thermoplastic	Bayonet Lock	E	Unshielded	Free Hanging (In-Line)	Thermoplastic	Brass	Female Sockets Receptacle	Crimp
SWITCHCRAFT/CONXALL W4291-7SG-P-3ES			Black	600 V	DC	-40 °C	85 °C	Dust Tight Waterproof	IP67	0 A	Varies by Wire Gauge	7		Gold	UV Resistant	Plastic	Thermoplastic	Bayonet Lock	Keyed	Unshielded	Panel Mount	Thermoplastic	Copper Alloy	Female Sockets Receptacle	Solder	UL94 HB				Bulkhead Front Side Nut
SWITCHCRAFT/CONXALL W3280-11PG-321	0.21 in	0.23 in	Black	600 V				Dust Tight Waterproof	IP67			11	Thermoplastic	Gold	Backshell Coupling Nut	Plastic	Thermoplastic	Bayonet Lock	E	Unshielded	Free Hanging (In-Line)	Thermoplastic	Brass	Male Pins Plug	Crimp
SWITCHCRAFT/CONXALL W5282-11PG-P-330	0.3 in	0.32 in	Black	600 V	DC	-40 °C	85 °C	Dust Tight Waterproof	IP67	0 A	Varies by Wire Gauge	11	Thermoplastic	Gold	Backshell UV Resistant	Plastic	Thermoplastic	Bayonet Lock	Keyed	Unshielded	Free Hanging (In-Line)	Thermoplastic	Copper Alloy	Male Pins Plug	Solder Cup	UL94 HB
SWITCHCRAFT/CONXALL W4291-5PG-P-3ES			Black	600 V	DC	-40 °C	85 °C	Dust Tight Waterproof	IP67	0 A	Varies by Wire Gauge	5		Gold	UV Resistant	Plastic	Thermoplastic	Bayonet Lock	Keyed	Unshielded	Panel Mount	Thermoplastic	Copper Alloy	Male Pins Receptacle	Solder	UL94 HB				Bulkhead Front Side Nut
