2867694
ObsoletePhoenix Contact
CBL ASSY SMA-NTYPE JK-PL 11.811"
2867694
ObsoletePhoenix Contact
CBL ASSY SMA-NTYPE JK-PL 11.811"
Description
General part information
2867694

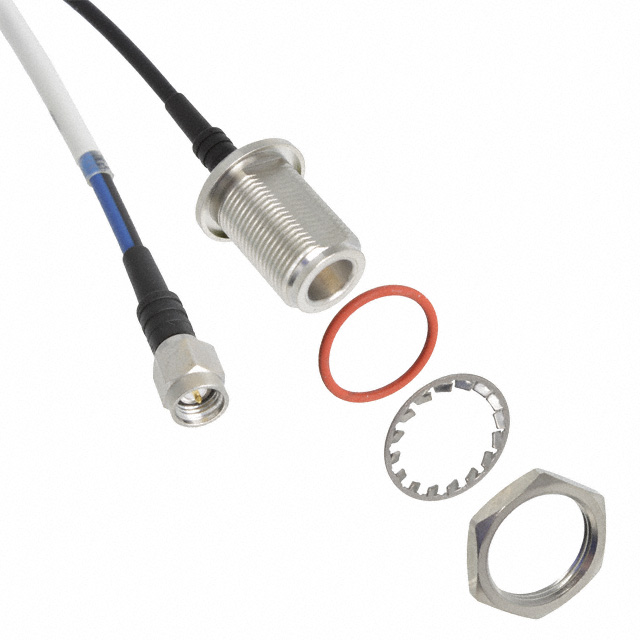

Cable Assembly Coaxial SMA to N-Type EF 316 11.811" (300.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2867694 |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | EF |
| Cable Type Size | 316 |
| Color | Blue |
| Features | Shielded |
| Frequency - Max | 2.4 GHz |
| Length | 11.811 in |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
