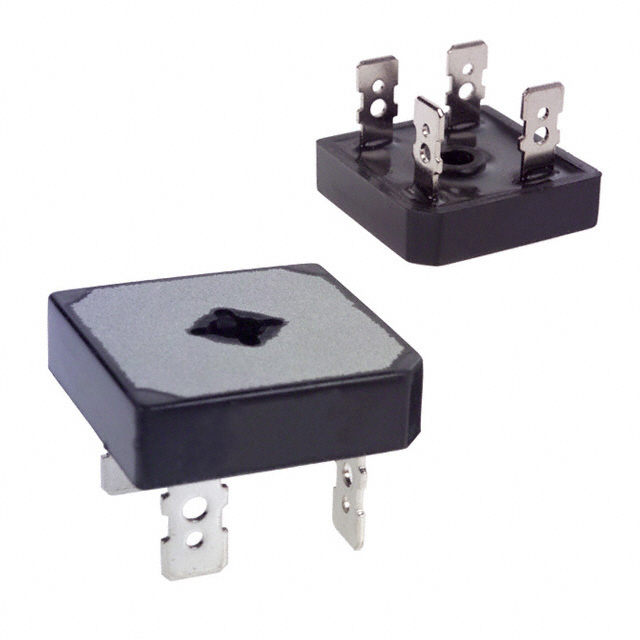

GBPC3501
ObsoleteDiodes Inc
BRIDGE RECT 1PHASE 100V 35A GBPC
GBPC3501
ObsoleteDiodes Inc
BRIDGE RECT 1PHASE 100V 35A GBPC
Description
General part information
GBPC3501
Bridge Rectifier Single Phase Standard 100 V QC Terminal GBPC
Technical Specifications
Parameters and characteristics for this part
| Specification | GBPC3501 |
|---|---|
| Current - Average Rectified (Io) | 35 A |
| Current - Reverse Leakage | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | QC Terminal |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | GBPC, 4-Square |
| Package Name | GBPC |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 1.1 V, 1.1 V |
| Voltage - Peak Reverse (Max) | 100 V |
