794227-3
ActiveTE Connectivity AMP Connectors

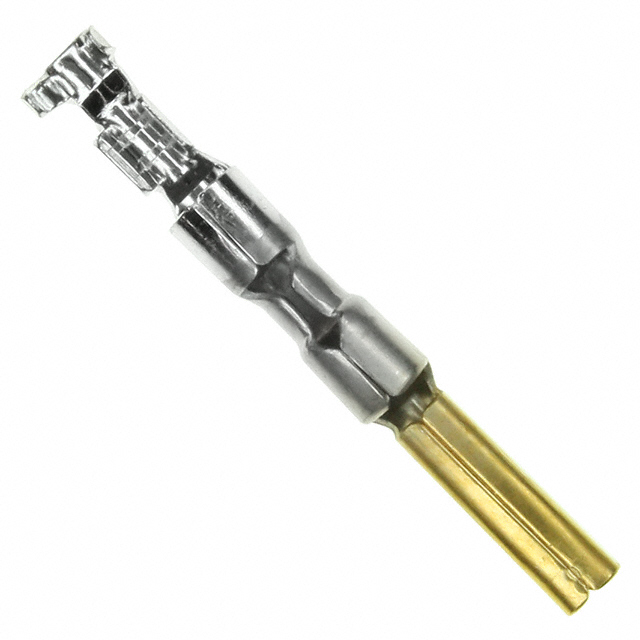

CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794227-3
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794227-3 | 794227 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
794227 Series
CONN SOCKET 22-26AWG CRIMP GOLD
| Part | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Pin or Socket |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794227-3 | Crimp | 0.76 Ám | 30 Áin | 22 AWG | 26 AWG | Gold | Socket |
TE Connectivity AMP Connectors 1-794227-0 | Crimp | 0.76 Ám | 30 Áin | 22 AWG | 26 AWG | Gold | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.55 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.39 | |||
Description
General part information
794227 Series
Socket Contact Gold 22-26 AWG Crimp
