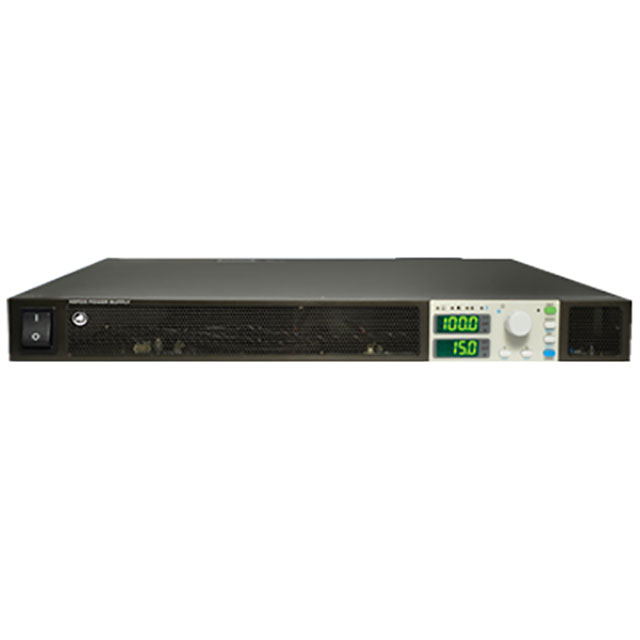

KLN 8-180

Active

Kepco and Kepco Power

POWER SUPPLY 1500W

Search across all available documentation for this part.

Active

Kepco and Kepco Power

POWER SUPPLY 1500W

Technical Specifications

Parameters and characteristics commom to parts in this series

POWER SUPPLY 3000W

Part	Display Type	Type	Ripple	Number of Characters	Power (Watts)	Voltage Regulation - Line	Voltage - Output [Min]	Voltage - Output [Max]	Current Regulation - Load	Current - Output [Max]	Current - Output [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Accuracy - Voltmeter; Ammeter	Voltage Regulation - Load	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current Regulation - Line
Kepco and Kepco Power KLN 8-360	Digital	Rack Mount (AC to DC)	23 mV	4	3000 W	0.05 %, 2.8 mV	0 VDC	8 V	0.1 %, 85 mA	360 A	0 A	190 VAC	240 VAC	0.02% + 3 Counts	0.05 %, 6.2 mV	16.929 in	3.465 "	18.504 "	88 mm	470 mm	430 mm	0.1 %, 42 mA
Kepco and Kepco Power KLN 8-180	Digital	Rack Mount (AC to DC)	15 mV	4	1500 W	0.05 %, 2.8 mV	0 VDC	8 V	0.1 %, 38 mA	180 A	0 A	100 VAC	240 VAC	0.02% + 3 Counts	0.05 %, 2.8 mV	16.929 in	1.732 in	18.504 "	44 mm	470 mm	430 mm	0.1 %, 18.5 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2271.25

General part information

0 ~ 8VDC Output Rack Mount (AC to DC) Power Supply Digital 0 ~ 180A Output 1500W Features Programmable, RS-485

Technical documentation and resources
