RH2V2-UDC100-110V

Active

IDEC Corporation

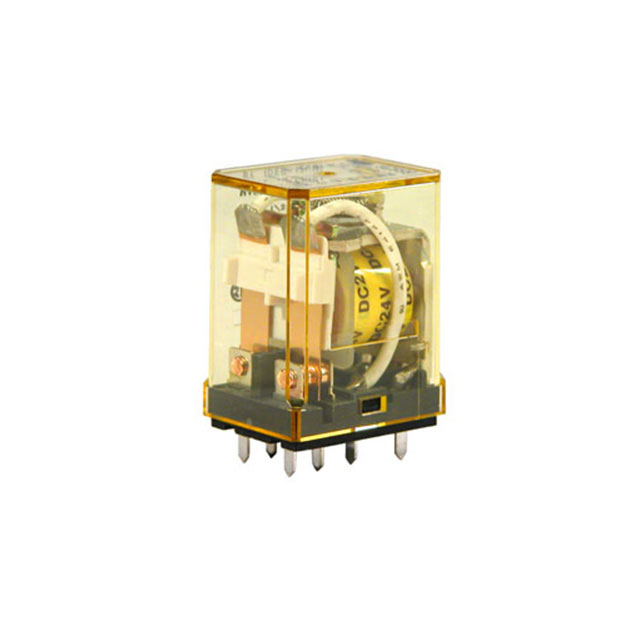

RELAY PCB DPDT 10A 110VDC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RH2V2-UDC100-110V

Active

IDEC Corporation

RELAY PCB DPDT 10A 110VDC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.48
		10	$ 8.28
		25	$ 7.85
		50	$ 7.53
		100	$ 7.49
Newark	Each	1	$ 15.39
		10	$ 14.78
		100	$ 14.17

Description

General part information

RH2V2-U Series

General Purpose Relay DPDT (2 Form C) 110VDC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	RH2V2-UDC100-110V	RH2V2-U Series

Approval Agency	CSA, TUV, cURus, CE	CSA, TUV, cURus, CE
Coil Current	9 mA	4.6 - 200 mA
Coil Resistance	12.25 kOhms	9.34 - 2560 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	110 VDC	6 - 125 VAC
Coil Voltage	-	110 - 220 VAC
Coil Voltage	-	120 - 240 VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A	10 A
Features	-	Lighted Indicator, Test Button, Diode
Load - Max Switching	300 W, 2400 VA	280 - 2400 W
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	88 VDC	4.8 - 192 VAC
Must Release Voltage	11 VDC	0.6 - 72 VAC/DC
Operate Time	20 ms	20 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	20 - 25 ms
Switching Voltage	30 VDC, 240 VAC	28 - 240 VAC
Termination Style	PC Pin	PC Pin

Part

Must Release Voltage

Contact Form

Coil Type

Contact Rating (Current)

Operating Temperature [Max]

Operating Temperature [Min]

Mounting Type

Must Operate Voltage

Load - Max Switching

Relay Type

Approval Agency

Contact Material

Switching Voltage

Termination Style

Operate Time

Release Time

Coil Current

Coil Voltage [Min]

Coil Voltage [Max]

Coil Resistance

Coil Voltage

Features

IDEC Corporation

RH2V2-UAC220-240V

72 VAC/DC

DPDT (2 Form C)

Non Latching

10 A

70 °C

-25 °C

Through Hole

192 VAC

280 W, 1200 VA

General Purpose

CE, CSA, cURus, TUV

Silver Cadmium Oxide (AgCdO)

28 VDC, 120 VAC

PC Pin

20 ms

25 ms

4.6 mA

220 VAC

240 VAC

18.8 kOhms

IDEC Corporation

RH2V2-UAC6V

1.8 VAC

DPDT (2 Form C)

Non Latching

10 A

70 °C

-25 °C

Through Hole

4.8 VAC/DC

300 W, 2400 VA

General Purpose

CE, CSA, cURus, TUV

Silver Cadmium Oxide (AgCdO)

30 VDC, 240 VAC

PC Pin

20 ms

200 mA

9.34 Ohms

6 VAC

IDEC Corporation

RH2V2-ULAC110-120V

DPDT (2 Form C)

Non Latching

10 A

70 °C

-25 °C

Through Hole

300 W, 2400 VA

General Purpose

CE, CSA, cURus, TUV

Silver Cadmium Oxide (AgCdO)

30 VDC, 240 VAC

PC Pin

20 ms

9.2 mA

110 VAC/DC

120 VAC

Lighted Indicator

IDEC Corporation

RH2V2-UAC12V

3.6 VAC

DPDT (2 Form C)

Non Latching

10 A

70 °C

-25 °C

Through Hole

9.6 VAC/DC

300 W, 2400 VA

General Purpose

CE, CSA, cURus, TUV

Silver Cadmium Oxide (AgCdO)

30 VDC, 240 VAC

PC Pin

20 ms

100 mA

39.3 Ohms

12 VAC/DC

IDEC Corporation

RH2V2-ULAC220-240V

DPDT (2 Form C)

Non Latching

10 A

70 °C

-25 °C

Through Hole

300 W, 2400 VA

General Purpose

CE, CSA, cURus, TUV

Silver Cadmium Oxide (AgCdO)

30 VDC, 240 VAC

PC Pin

20 ms

4.6 mA

220 VAC

240 VAC

18.82 kOhms

Lighted Indicator

IDEC Corporation

RH2V2-UDC6V

0.6 VDC

DPDT (2 Form C)

Non Latching

10 A

70 °C

-25 °C

Through Hole

4.8 VDC

300 W, 2400 VA

General Purpose

CE, CSA, cURus, TUV

Silver Cadmium Oxide (AgCdO)

30 VDC, 240 VAC

PC Pin

20 ms

150 mA

40 Ohms

IDEC Corporation

RH2V2-ULDC48V

4.8 VDC

DPDT (2 Form C)

Non Latching

10 A

70 °C

-25 °C

Through Hole

38.4 VDC

300 W, 2400 VA

General Purpose

CE, CSA, cURus, TUV

Silver Cadmium Oxide (AgCdO)

30 VDC, 240 VAC

PC Pin

20 ms

18.8 mA

2560 Ohms

48 VDC

Lighted Indicator

IDEC Corporation

RH2V2-UCDC24V

2.4 VDC

DPDT (2 Form C)

Non Latching

10 A

70 °C

-25 °C

Through Hole

19.2 VDC

300 W, 2400 VA

General Purpose

CE, CSA, cURus, TUV

Silver Cadmium Oxide (AgCdO)

30 VDC, 240 VAC

PC Pin

20 ms

37.5 mA

640 Ohms

24 VDC

Test Button

IDEC Corporation

RH2V2-ULD-DC24V

2.4 VDC

DPDT (2 Form C)

Non Latching

10 A

70 °C

-25 °C

Through Hole

19.2 VDC

300 W, 2400 VA

General Purpose

CE, CSA, cURus, TUV

Silver Cadmium Oxide (AgCdO)

30 VDC, 240 VAC

PC Pin

20 ms

37.5 mA

640 Ohms

24 VDC

Diode, Lighted Indicator

IDEC Corporation

RH2V2-UD-DC12V

1.2 VDC

DPDT (2 Form C)

Non Latching

10 A

70 °C

-25 °C

Through Hole

9.6 VDC

300 W, 2400 VA

General Purpose

CE, CSA, cURus, TUV

Silver Cadmium Oxide (AgCdO)

30 VDC, 240 VAC

PC Pin

20 ms

75 mA

160 Ohms

12 VDC

Diode

Part	Must Release Voltage	Contact Form	Coil Type	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Must Operate Voltage	Load - Max Switching	Relay Type	Approval Agency	Contact Material	Switching Voltage	Termination Style	Operate Time	Release Time	Coil Current	Coil Voltage [Min]	Coil Voltage [Max]	Coil Resistance	Coil Voltage	Features
IDEC Corporation RH2V2-UAC220-240V	72 VAC/DC	DPDT (2 Form C)	Non Latching	10 A	70 °C	-25 °C	Through Hole	192 VAC	280 W, 1200 VA	General Purpose	CE, CSA, cURus, TUV	Silver Cadmium Oxide (AgCdO)	28 VDC, 120 VAC	PC Pin	20 ms	25 ms	4.6 mA	220 VAC	240 VAC	18.8 kOhms
IDEC Corporation RH2V2-UAC6V	1.8 VAC	DPDT (2 Form C)	Non Latching	10 A	70 °C	-25 °C	Through Hole	4.8 VAC/DC	300 W, 2400 VA	General Purpose	CE, CSA, cURus, TUV	Silver Cadmium Oxide (AgCdO)	30 VDC, 240 VAC	PC Pin	20 ms	20 ms	200 mA			9.34 Ohms	6 VAC
IDEC Corporation RH2V2-ULAC110-120V		DPDT (2 Form C)	Non Latching	10 A	70 °C	-25 °C	Through Hole		300 W, 2400 VA	General Purpose	CE, CSA, cURus, TUV	Silver Cadmium Oxide (AgCdO)	30 VDC, 240 VAC	PC Pin	20 ms	20 ms	9.2 mA	110 VAC/DC	120 VAC			Lighted Indicator
IDEC Corporation RH2V2-UAC12V	3.6 VAC	DPDT (2 Form C)	Non Latching	10 A	70 °C	-25 °C	Through Hole	9.6 VAC/DC	300 W, 2400 VA	General Purpose	CE, CSA, cURus, TUV	Silver Cadmium Oxide (AgCdO)	30 VDC, 240 VAC	PC Pin	20 ms	20 ms	100 mA			39.3 Ohms	12 VAC/DC
IDEC Corporation RH2V2-ULAC220-240V		DPDT (2 Form C)	Non Latching	10 A	70 °C	-25 °C	Through Hole		300 W, 2400 VA	General Purpose	CE, CSA, cURus, TUV	Silver Cadmium Oxide (AgCdO)	30 VDC, 240 VAC	PC Pin	20 ms	20 ms	4.6 mA	220 VAC	240 VAC	18.82 kOhms		Lighted Indicator
IDEC Corporation RH2V2-UDC6V	0.6 VDC	DPDT (2 Form C)	Non Latching	10 A	70 °C	-25 °C	Through Hole	4.8 VDC	300 W, 2400 VA	General Purpose	CE, CSA, cURus, TUV	Silver Cadmium Oxide (AgCdO)	30 VDC, 240 VAC	PC Pin	20 ms	20 ms	150 mA			40 Ohms
IDEC Corporation RH2V2-ULDC48V	4.8 VDC	DPDT (2 Form C)	Non Latching	10 A	70 °C	-25 °C	Through Hole	38.4 VDC	300 W, 2400 VA	General Purpose	CE, CSA, cURus, TUV	Silver Cadmium Oxide (AgCdO)	30 VDC, 240 VAC	PC Pin	20 ms	20 ms	18.8 mA			2560 Ohms	48 VDC	Lighted Indicator
IDEC Corporation RH2V2-UCDC24V	2.4 VDC	DPDT (2 Form C)	Non Latching	10 A	70 °C	-25 °C	Through Hole	19.2 VDC	300 W, 2400 VA	General Purpose	CE, CSA, cURus, TUV	Silver Cadmium Oxide (AgCdO)	30 VDC, 240 VAC	PC Pin	20 ms	20 ms	37.5 mA			640 Ohms	24 VDC	Test Button
IDEC Corporation RH2V2-ULD-DC24V	2.4 VDC	DPDT (2 Form C)	Non Latching	10 A	70 °C	-25 °C	Through Hole	19.2 VDC	300 W, 2400 VA	General Purpose	CE, CSA, cURus, TUV	Silver Cadmium Oxide (AgCdO)	30 VDC, 240 VAC	PC Pin	20 ms	20 ms	37.5 mA			640 Ohms	24 VDC	Diode, Lighted Indicator
IDEC Corporation RH2V2-UD-DC12V	1.2 VDC	DPDT (2 Form C)	Non Latching	10 A	70 °C	-25 °C	Through Hole	9.6 VDC	300 W, 2400 VA	General Purpose	CE, CSA, cURus, TUV	Silver Cadmium Oxide (AgCdO)	30 VDC, 240 VAC	PC Pin	20 ms	20 ms	75 mA			160 Ohms	12 VDC	Diode
