Specification	KSZ8873RLLU-TR

Current - Supply	115 mA
Function	Switch
Interface	I2C, SPI
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	64-LQFP
Package Length	10 mm
Package Name	64-LQFP
Package Width	10 mm
Protocol	Ethernet
Standards	10BASE-T, 100BASE-T, 10BASE-TX, 100BASE-TX
Voltage - Supply	2.5 V, 1.8 V, 3.3 V
Voltage - Supply	2.5V, 3.3V, 1.8V

KSZ8873 Series

Part	Voltage - Supply	Voltage - Supply	Operating Temperature (Min)	Operating Temperature (Max)	Protocol	Standards	Package Length	Package Name	Package Width	Function	Interface	Current - Supply	Package / Case	Supplied Contents	Utilized IC / Part	Embedded	Contents	Type	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 1 Maximum)	Grade	Qualification
Microchip Technology KSZ8873RLLI-TR	1.8 V 2.5 V 3.3 V	1.8V 2.5V 3.3V	-40 °C	85 °C	Ethernet	100BASE-T 100BASE-TX 10BASE-T 10BASE-TX	10 mm	64-LQFP	10 mm	Switch	I2C SPI	115 mA	64-LQFP
Microchip Technology KSZ8873MML	1.8 V 2.5 V 3.3 V	1.8V 2.5V 3.3V	0 °C	70 °C	Ethernet	100BASE-T 100BASE-TX 10BASE-T 10BASE-TX	10 mm	64-LQFP	10 mm	Switch	I2C SPI	115 mA	64-LQFP
Microchip Technology KSZ8873MLLJ	1.8 V 2.5 V 3.3 V	1.8V 2.5V 3.3V	-40 °C	125 °C	Ethernet	100BASE-T 100BASE-TX 10BASE-T 10BASE-TX	10 mm	64-LQFP	10 mm	Switch	I2C SPI	115 mA	64-LQFP

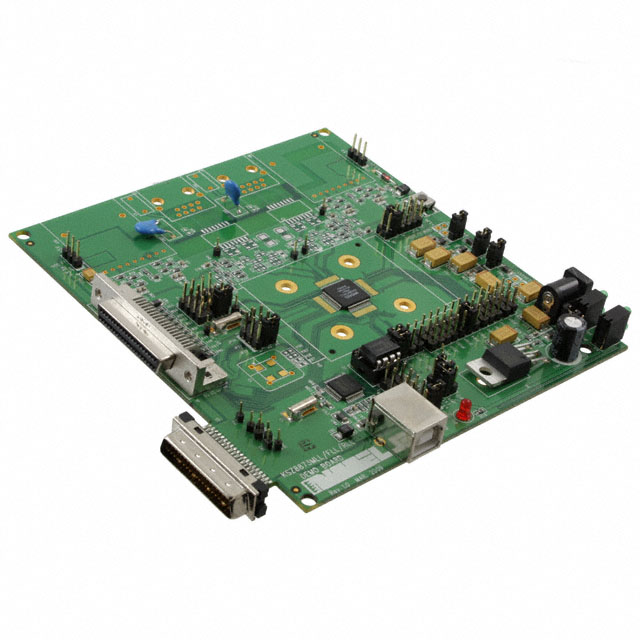

Microchip Technology KSZ8873FLL-EVAL										Ethernet Controller (PHY and MAC)				Board(s)	KSZ8873FLL	No	Board	Interface
Microchip Technology KSZ8873RLL-EVAL										Ethernet Controller (PHY and MAC)				Board(s)	KSZ8873RLL	No	Board	Interface
Microchip Technology KSZ8873MML-EVAL										Ethernet Controller (PHY and MAC)				Board(s)	KSZ8873MML	No	Board	Interface
Microchip Technology KSZ8873MLLV			0 °C	70 °C	Ethernet	10/100 Base-T/TX PHY IEEE 802.3	10 mm	64-LQFP	10 mm	Switch	I2C MII SPI	115 mA	64-LQFP						3.465 V	2.5 V	1.66 V	1.94 V	Automotive	AEC-Q100
Microchip Technology KSZ8873MLL-AM	1.8 V 2.5 V 3.3 V	1.8V 2.5V 3.3V	-40 °C	85 °C	Ethernet	100BASE-T 100BASE-TX 10BASE-T 10BASE-TX	10 mm	64-PQFP	10 mm	Switch	I2C SPI	115 mA	64-LQFP
Microchip Technology KSZ8873MLLI-TR			-40 °C	85 °C	Ethernet	10/100 Base-T/TX PHY IEEE 802.3	10 mm	64-LQFP	10 mm	Switch	I2C SPI	115 mA	64-LQFP						3.465 V	2.5 V	1.66 V	1.94 V
Microchip Technology KSZ8873RLLI	1.8 V 2.5 V 3.3 V	1.8V 2.5V 3.3V	-40 °C	85 °C	Ethernet	100BASE-T 100BASE-TX 10BASE-T 10BASE-TX				Switch	I2C SPI	115 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

KSZ8873RLLU-TR | Datasheet
