151-01916

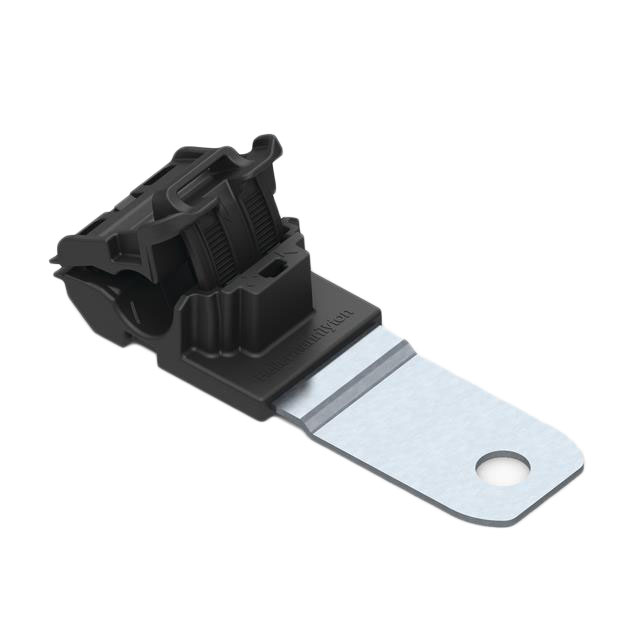

ActiveCABLE MOUNTING & ACCESSORIES RATCHET P-CLAMP, 0.24 - 0.54" BUNDLE DIA, 180 MEDIUM, 0.33" HOLE DIA, PA66HIRHSUV/SS304, BLACK, 200/CTN
Deep-Dive with AI
Search across all available documentation for this part.
151-01916
ActiveCABLE MOUNTING & ACCESSORIES RATCHET P-CLAMP, 0.24 - 0.54" BUNDLE DIA, 180 MEDIUM, 0.33" HOLE DIA, PA66HIRHSUV/SS304, BLACK, 200/CTN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 151-01916 | A Series |
|---|---|---|
| Bundle Center to Mounting Center | 72.4 mm | 72.4 mm |
| Bundle Center to Mounting Center | 2.85 in | 2.85 in |
| Bundle Center to Mounting Center | - | 2.15 in |
| Bundle Center to Mounting Center | - | 54.61 mm |
| Color | Black | Black |
| Features | UV Resistant, Heat Stabilized, Impact Resistant | UV Resistant, Heat Stabilized, Impact Resistant |
| Length | 4.138 in | 4.138 in |
| Length | 105.11 mm | 105.11 mm |
| Length | - | 3.421 " |
| Length | - | 86.9 mm |
| Material | Polyamide (PA66), Steel, Nylon 6/6 | Polyamide (PA66), Steel, Nylon 6/6 |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Type | Fastener | Fastener |
| Opening Size [Max] | 13.7 mm | 13.7 mm |
| Opening Size [Max] | 0.539 in | 0.539 in |
| Opening Size [Min] | 6.2 mm | 6.2 mm |
| Opening Size [Min] | 0.244 in | 0.244 in |
| Panel Hole Size | 8.31 mm | 8.31 - 12.95 mm |
| Panel Hole Size | 0.327 in | 0.327 - 0.51 in |
| Screw Size | M8 | M12, M8 |
| Type | Clamp, P-Type | Clamp, P-Type |
| Type Attributes | Ribbed, Ratchet | Ratchet, Ribbed |
| Type Attributes | 180 ° | 15 - 180 ° |
| Width [y] | 1.374 in | 1.374 in |
| Width [y] | 34.9 mm | 34.9 mm |
A Series
Non-Isolated DC/DC Converters A-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, , -6000V DC HVout, 30W, Thru-hole mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Heatsink
| Part | Type Attributes | Type Attributes | Color | Panel Hole Size | Panel Hole Size | Mounting Type | Material Flammability Rating | Features | Length [x] | Length [x] | Width [y] | Width [y] | Bundle Center to Mounting Center [x] | Bundle Center to Mounting Center [x] | Screw Size | Material | Type | Opening Size [Min] | Opening Size [Max] | Opening Size [Max] | Opening Size [Min] | Length | Length | Bundle Center to Mounting Center | Bundle Center to Mounting Center |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HELLERMANNTYTON 151-01926 | 15 ° | Ratchet, Ribbed | Black | 0.51 in | 12.95 mm | Fastener | UL94 HB | Heat Stabilized, Impact Resistant, UV Resistant | 3.421 " | 86.9 mm | 1.374 in | 34.9 mm | 2.15 in | 54.61 mm | M12 | Nylon 6/6, Polyamide (PA66), Steel | Clamp, P-Type | 6.2 mm | 13.7 mm | 0.539 in | 0.244 in | ||||
HELLERMANNTYTON 151-01916 | 180 ° | Ratchet, Ribbed | Black | 0.327 in | 8.31 mm | Fastener | UL94 HB | Heat Stabilized, Impact Resistant, UV Resistant | 1.374 in | 34.9 mm | M8 | Nylon 6/6, Polyamide (PA66), Steel | Clamp, P-Type | 6.2 mm | 13.7 mm | 0.539 in | 0.244 in | 4.138 in | 105.11 mm | 72.4 mm | 2.85 in |
