BK/GDB-800MA
ActiveEaton - Electronics Division

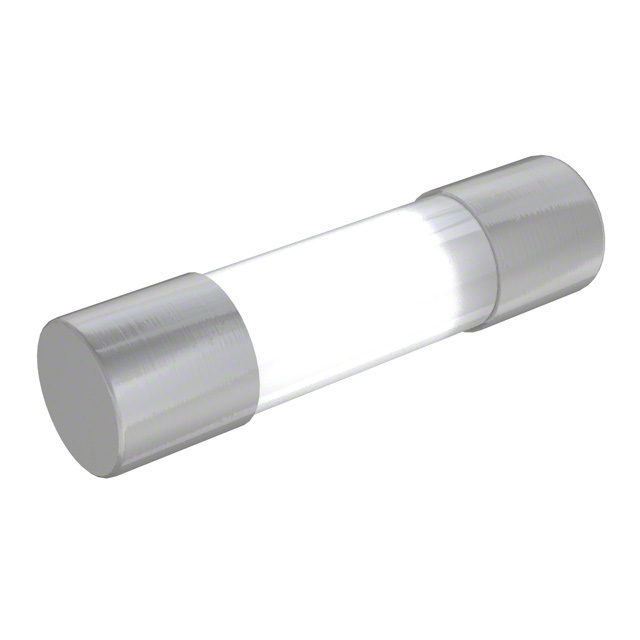

FUSE GLASS 800MA 250VAC 5X20MM
BK/GDB-800MA
ActiveEaton - Electronics Division
FUSE GLASS 800MA 250VAC 5X20MM
Description
General part information
BK/GDB-800MA
800 mA 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/GDB-800MA |
|---|---|
| Approval Agency | VDE, UL |
| Breaking Capacity | 35 A |
| Current Rating | 800 mA |
| DC Cold Resistance | 0.14 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 0.67 |
| Mounting Type | Requires Holder |
| Package / Case | 5mm x 20mm |
| Package Diameter | 5 mm, 20 mm |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 250 V |
