NRG3474H4090B2H
ActiveEaton - Electronics Division
THERMISTOR 47K OHM 4090 BETA
NRG3474H4090B2H
ActiveEaton - Electronics Division
THERMISTOR 47K OHM 4090 BETA
Description
General part information
NRG3474H4090B2H

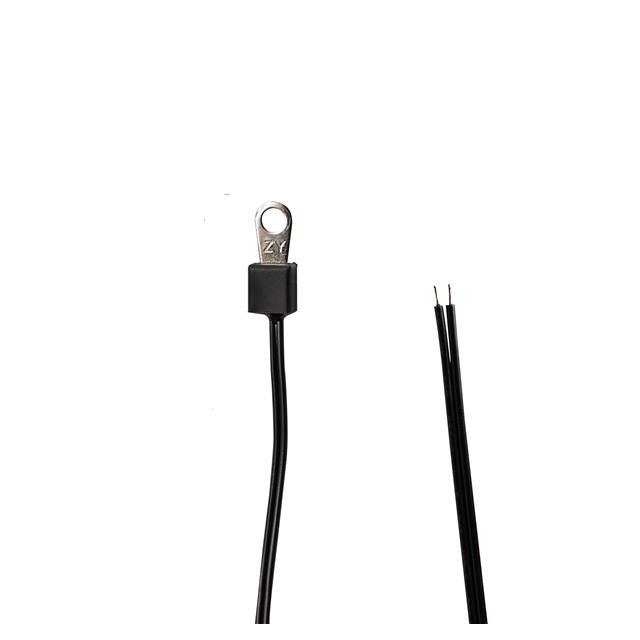

NTC Thermistor 47k Bead with Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | NRG3474H4090B2H |
|---|---|
| B Value (25/85) | 4090 K |
| B Value Tolerance | 3 % |
| Length - Lead Wire | 11.81 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Bead with Terminal |
| Power - Max | 50 mW |
| Resistance (Ohms) | 47 kOhm |
| Resistance Tolerance (%) | 3 % |
