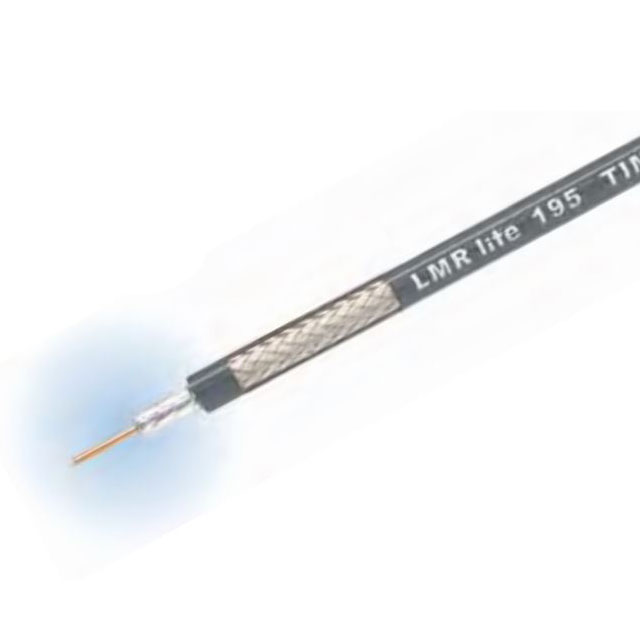

LMR-LW195

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUM BRAID FOOT

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUM BRAID FOOT

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-LW195

Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	2.79 mm
Dielectric Diameter [diameter]	0.11 in
Dielectric Material	Foam Polyethylene (FPE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Aluminum
Shield Type	Braid
Spool Size	500 '
Spool Size	152.4 m
VoP, Velocity of Propagation	80

STANDARD CABLE, ALUM BRAID FOOT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Shield Material	Jacket Color	VoP, Velocity of Propagation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Dielectric Material	Cable Type	Conductor Strand	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Material	Spool Size	Spool Size	Conductor Material	Shield Type
Amphenol Times Microwave Systems LMR-LW195	85 °C	-40 °C	50 Ohms	Aluminum	Black	80	0.195 in	4.95 mm	Enter Number of Feet in Order Quantity	Foam Polyethylene (FPE)	Coaxial	Solid	2.79 mm	0.11 in	Polyethylene (PE)	500 '	152.4 m	Copper, Bare	Braid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable Enter Number of Feet in Order Quantity 50 Ohms
