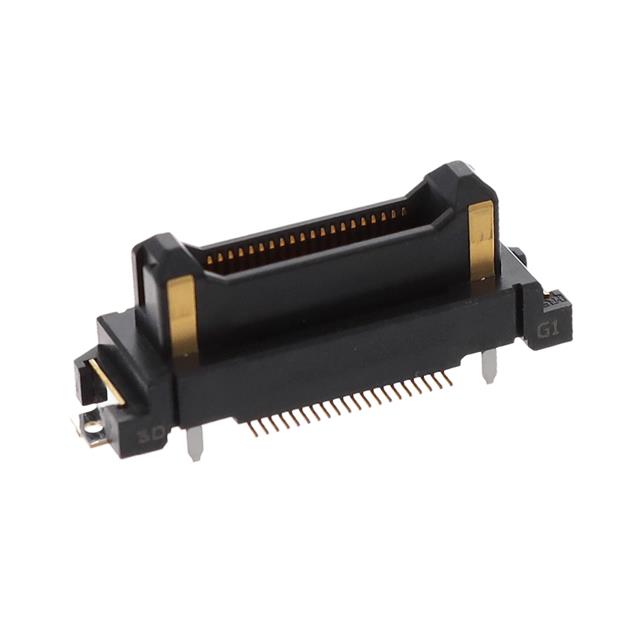

Specification	FX23L-40P-0.5SV10

Connector Type	Outer Shroud Contacts, Header
Contact Finish	Gold
Contact Finish Thickness	4 µin
Features	Board Guide
Height Above Board	0.348 in
Mounting Type	Surface Mount
Number of Positions (Normal)	40
Number of Positions (Power)	4
Number of Positions (Total)	44
Number of Rows	2
Pitch	0.02 in

FX23L Series

Part	Features	Number of Rows	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Height Above Board	Contact Finish Thickness	Connector Type	Mounting Type	Pitch	Contact Finish
Hirose Electric Co Ltd FX23L-20P-0.5SV12(20)	Board Guide	2	4	24	20	0.427 in	4 µin	Header Outer Shroud Contacts	Surface Mount	0.02 in	Gold
Hirose Electric Co Ltd FX23L-20S-0.5SV	Board Guide Pick and Place	2	4	24	20	0.228 in	4 µin	Center Strip Contacts Receptacle	Surface Mount	0.02 in	Gold
Hirose Electric Co Ltd FX23L-20P-0.5SV12	Board Guide	2	4	24	20	0.427 in	4 µin	Header Outer Shroud Contacts	Surface Mount	0.02 in	Gold
Hirose Electric Co Ltd FX23L-40P-0.5SV12	Board Guide	2	4	44	40	0.427 in	4 µin	Header Outer Shroud Contacts	Surface Mount	0.02 in	Gold
Hirose Electric Co Ltd FX23L-20P-0.5SV12(01)	Board Guide	2	4	24	20	0.427 in	4 µin	Header Outer Shroud Contacts	Surface Mount	0.02 in	Gold
Hirose Electric Co Ltd FX23L-40S-0.5SV	Board Guide Pick and Place	2	4	44	40	0.228 in	4 µin	Center Strip Contacts Receptacle	Surface Mount	0.02 in	Gold
Hirose Electric Co Ltd FX23L-20P-0.5SV8	Board Guide	2	4	24	20	0.27 in	4 µin	Header Outer Shroud Contacts	Surface Mount	0.02 in	Gold
Hirose Electric Co Ltd FX23L-60P-0.5SV12	Board Guide	2	4	64	60	0.427 in	4 µin	Header Outer Shroud Contacts	Surface Mount	0.02 in	Gold
Hirose Electric Co Ltd FX23L-100P-0.5SV10(20)	Board Guide	2	4	104	100	0.348 in	4 µin	Header Outer Shroud Contacts	Surface Mount	0.02 in	Gold
Hirose Electric Co Ltd FX23L-100S-0.5SV	Board Guide Pick and Place	2	4	104	100	0.228 in	4 µin	Center Strip Contacts Receptacle	Surface Mount	0.02 in	Gold
