9860 0102000

Active

Belden Inc.

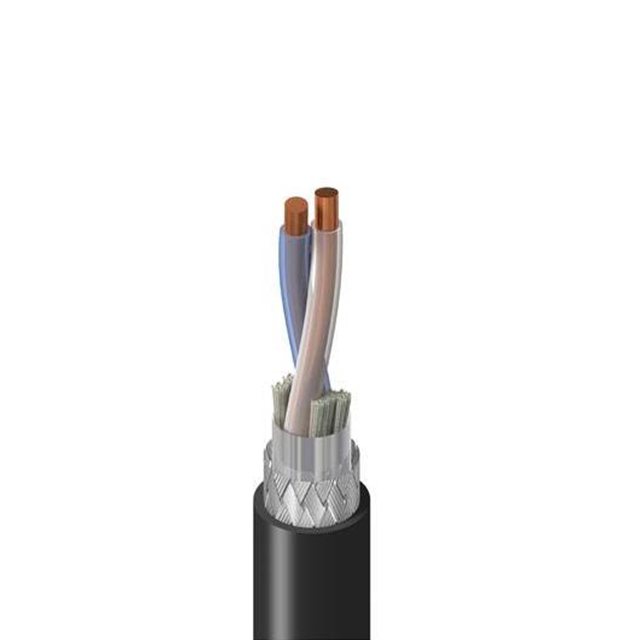

CABLE TWINAXIAL 16AWG 2000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE TWINAXIAL 16AWG 2000'

Technical Specifications

Parameters and characteristics for this part

Specification	9860 0102000

Cable Type	Twinaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.161 in
Dielectric Diameter [diameter]	4.09 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	124 Ohms
Jacket (Insulation) Diameter	0.44 in
Jacket (Insulation) Diameter	11.18 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	2000 ft
Length [x]	609.6 m
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	78
Wire Gauge	16 AWG

Part	Cable Type	Wire Gauge	Jacket (Insulation) Material	Shield Type	Impedance	Conductor Material	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	VoP, Velocity of Propagation	Jacket Color	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Shield Coverage	Dielectric Material	Length [x]	Length [x]
Belden Inc. 9860 0102000	Twinaxial	16 AWG	Poly-Vinyl Chloride (PVC)	Braid Foil	124 Ohms	Copper Bare	0.44 in	11.18 mm	0.161 in	4.09 mm	78	Black	Aluminum Copper Tinned	-20 C	60 °C	Solid	90 % 100 %	Foam Polyethylene (FPE)	2000 ft	609.6 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Twinaxial Cable 16 AWG 2000.0' (609.60m) 124 Ohms
