12-14S - 12-14S

12-14S

Active
3M

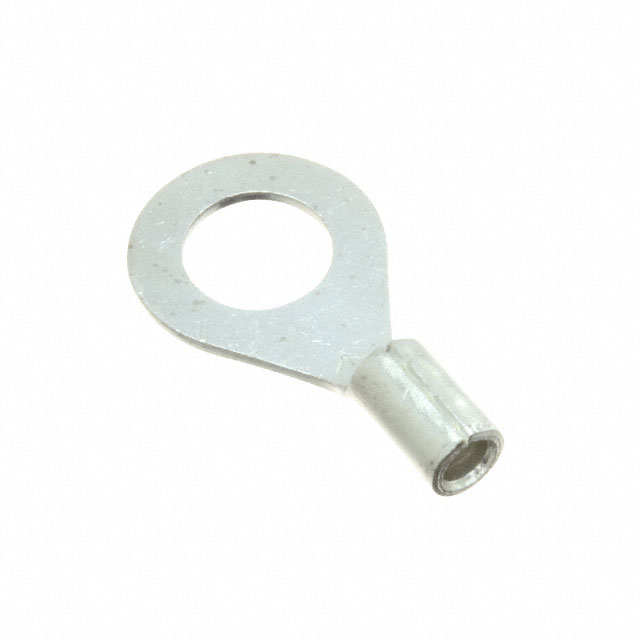

16-14 AWG NON-INSULATED BUTTED SEAM RING TONGUE TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
12-14S - 12-14S

12-14S

Active
3M

16-14 AWG NON-INSULATED BUTTED SEAM RING TONGUE TERMINAL

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification12-14S12-14 Series
Contact FinishTinTin
Contact MaterialETP, CopperETP, Copper
FeaturesButted SeamButted Seam, Brazed Seam
InsulationNon-InsulatedNon-Insulated
Length - Overall [x]0.89 in0.89 in
Length - Overall [x]22.61 mm22.61 mm
Mounting TypeFree Hanging (In-Line)Free Hanging (In-Line)
Stud/Tab Size0.25 Stud0.25 Stud
Terminal TypeCircularCircular
TerminationCrimpCrimp
Thickness0.03 in0.03 in
Thickness0.76 mm0.76 mm
Width - Outer Edges [y]0.47 in0.47 in
Width - Outer Edges [y]11.94 mm11.94 mm

12-14 Series

16-14 AWG NON-INSULATED BUTTED SEAM RING TONGUE TERMINAL

PartMounting TypeTerminal TypeWidth - Outer Edges [y]Width - Outer Edges [y]TerminationStud/Tab SizeLength - Overall [x]Length - Overall [x]ThicknessThicknessContact FinishInsulationFeaturesContact Material
3M
12-14S
Free Hanging (In-Line)
Circular
0.47 in
11.94 mm
Crimp
0.25 Stud
0.89 in
22.61 mm
0.03 in
0.76 mm
Tin
Non-Insulated
Butted Seam
Copper, ETP
3M
12-14S-W
Free Hanging (In-Line)
Circular
0.47 in
11.94 mm
Crimp
0.25 Stud
0.89 in
22.61 mm
0.03 in
0.76 mm
Tin
Non-Insulated
Brazed Seam
Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.32
10$ 0.24
25$ 0.22
50$ 0.20
100$ 0.18
250$ 0.17
500$ 0.15
1000$ 0.14
2500$ 0.13
NewarkEach 500$ 0.14

Description

General part information

12-14 Series

Ring Terminal Connector 1/4 Stud Circular 14-16 AWG Crimp
