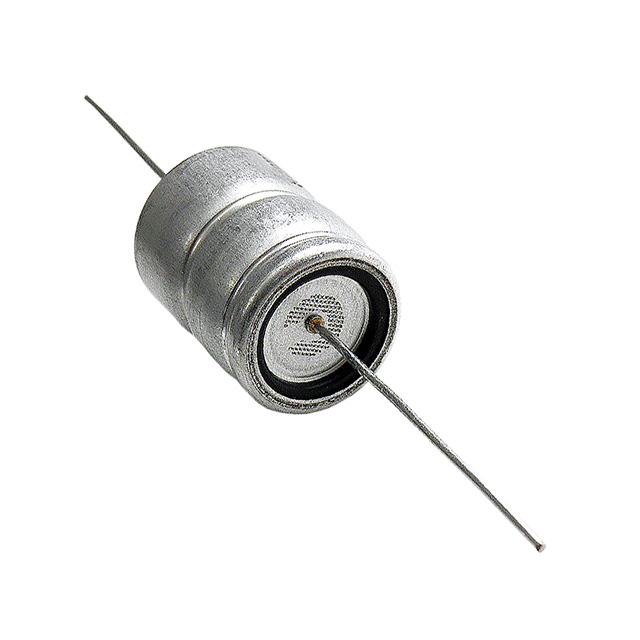

Specification	AXLH681P063EH

Applications	High Temperature Reflow
Capacitance	680 µF
ESR (Equivalent Series Resistance)	87 mOhm
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Axial
Polarization	Polar
Ripple Current	6.9 A, 2.415 A
Size / Dimension Diameter	0.787 in
Size / Dimension Length	1.378 in
Tolerance (Negative)	10 %
Tolerance (Positive)	30 %
Voltage - Rated	63 V
