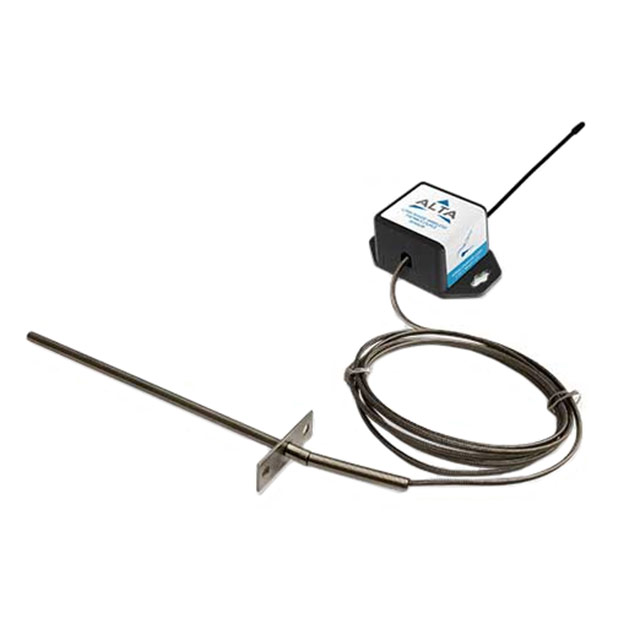

MNS2-9-W1-TS-TC-HW

Active

Monnit Corporation

ALTA WIRELESS THERMOCOUPLE SENSO

Search across all available documentation for this part.

Active

Monnit Corporation

ALTA WIRELESS THERMOCOUPLE SENSO

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNS2-9-W1-TS-TC-HW	MNS2 Series

Accessory Type	-	Wireless Relay (IoT Finished Device)
Color	-	Black
Coverage	-	1000 Square Feet
Element Type	K - Type	K - Type
For Use With/Related Products	-	K-Type Probe Tips
Length - Lead Wire [x]	72 in	5.02 - 72 '
Length - Lead Wire [x]	1.83 m	1.53 - 1.83 m
Manual Override	-	False
Mounting Type	-	Chassis Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	1.81 mOhm
Sensor Type	-	Passive Infrared
Temperature Range [Max]	400 °C	400 °C
Temperature Range [Min]	-100 °C	-100 °C
Voltage - Supply	-	3.8 V
Voltage - Supply	-	2 V

-100℃~+400℃ TEMPERATURE SENSORS ROHS

Part	Element Type	Temperature Range [Max]	Temperature Range [Min]	Length - Lead Wire [x]	Length - Lead Wire [x]	For Use With/Related Products	Accessory Type	Output Type	Sensor Type	Coverage	Operating Temperature [Max]	Operating Temperature [Min]	Color	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Monnit Corporation MNS2-9-W2-TS-TC-KT	K - Type	400 °C	-100 °C	1.53 m	5.02 '
Monnit Corporation MNS2-9-W1-TS-TC-HW	K - Type	400 °C	-100 °C	1.83 m	72 in
Monnit Corporation MNS2-9-W2-TS-TC-KP						K-Type Probe Tips	Wireless Relay (IoT Finished Device)
Monnit Corporation MNS2-9-IN-TS-TC-KT	K - Type	400 °C	-100 °C	1.53 m	5.02 '
Monnit Corporation MNS2-9-W1-TS-TC-KT	K - Type	400 °C	-100 °C	1.53 m	5.02 '
Monnit Corporation MNS2-9-IN-TS-TC-KP						K-Type Probe Tips	Wireless Relay (IoT Finished Device)
Monnit Corporation MNS2-9-W2-MS-IR								1.81 mOhm	Passive Infrared	1000 Square Feet	85 °C	-40 °C	Black	Chassis Mount	3.8 V	2 V
Monnit Corporation MNS2-9-W1-TS-TC-KP						K-Type Probe Tips	Wireless Relay (IoT Finished Device)
Monnit Corporation MNS2-9-W2-TS-TC-HW	K - Type	400 °C	-100 °C	1.83 m	72 in
Monnit Corporation MNS2-9-IN-TS-TC-HW	K - Type	400 °C	-100 °C	1.83 m	72 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 171.80

General part information

K - Type Temperature Sensor -100°C ~ 400°C

Technical documentation and resources
