ASM-1900035-21

Obsolete

OKdo

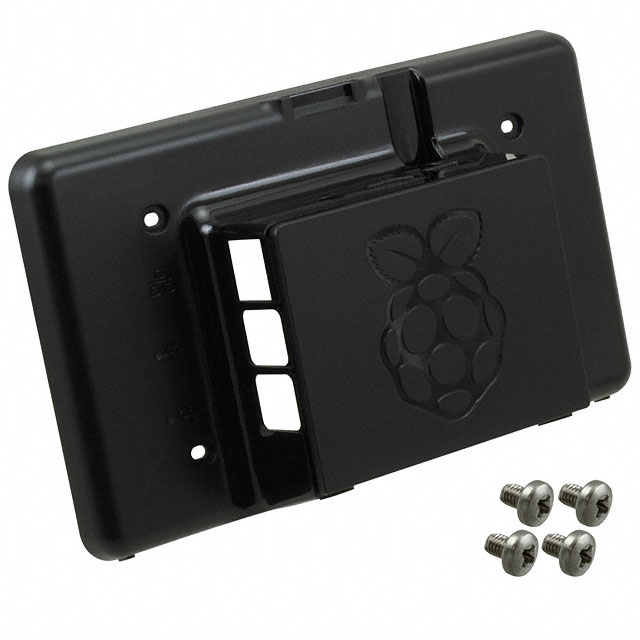

CASE ABS BLK 7.761"LX4.553"W

Search across all available documentation for this part.

Obsolete

OKdo

CASE ABS BLK 7.761"LX4.553"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ASM-1900035-21	ASM-1900035 Series

Color	Black	White, Clear, Black
Container Type	Case	Case
Design	Hand Held	Hand Held
Height [z]	46.76 mm	46.76 mm
Height [z]	1.841 in	1.841 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Platform	Raspberry Pi Touchscreen	Raspberry Pi Touchscreen
Size / Dimension [x]	197.12 mm	197.12 mm
Size / Dimension [x]	7.761 in	7.761 in
Size / Dimension [y]	115.64 mm	115.64 mm
Size / Dimension [y]	4.553 in	4.553 in

CASE ABS WHITE 7.761"LX4.553"W

Part	Container Type	Material Flammability Rating	Color	Design	Height [z]	Height [z]	Material	Platform	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
OKdo ASM-1900035-11	Case	UL94 HB	White	Hand Held	46.76 mm	1.841 in	Plastic, ABS	Raspberry Pi Touchscreen	197.12 mm	115.64 mm	7.761 in	4.553 in
OKdo ASM-1900035-01	Case	UL94 HB	Clear	Hand Held	46.76 mm	1.841 in	Plastic, ABS	Raspberry Pi Touchscreen	197.12 mm	115.64 mm	7.761 in	4.553 in
OKdo ASM-1900035-21	Case	UL94 HB	Black	Hand Held	46.76 mm	1.841 in	Plastic, ABS	Raspberry Pi Touchscreen	197.12 mm	115.64 mm	7.761 in	4.553 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Case Plastic, ABS Black Hand Held 7.761" L x 4.553" W (197.12mm x 115.64mm) X 1.841" (46.76mm)
