2009-YSY
ActiveCurtis Industries

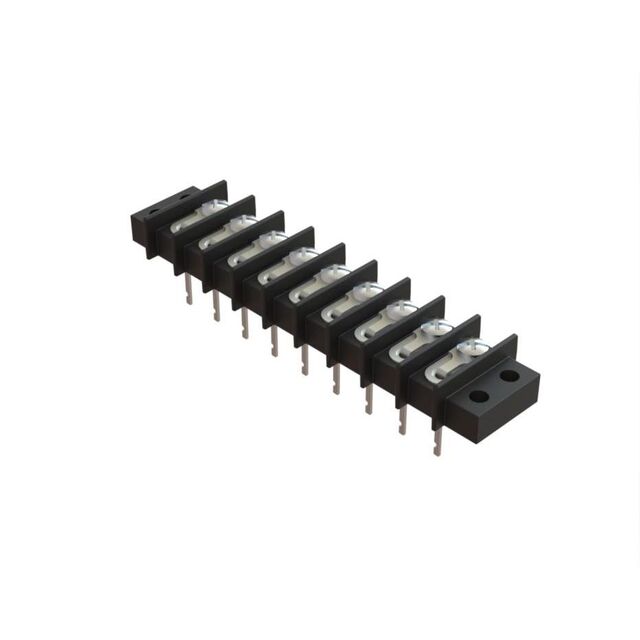

CONN BARRIER STRIP 9CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2009-YSY
ActiveCurtis Industries
CONN BARRIER STRIP 9CIRC 0.438"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2009-YSY | 2009 Series |
|---|---|---|
| Barrier Type | - | 2 Wall (Dual) |
| Bottom Termination | - | Wire Wrap, Closed, Solder Tab |
| Current Rating (Amps) | - | 30 A |
| Features | - | Flange |
| Material - Insulation | - | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | - | Chassis, Panel, Through Hole, Panel, Chassis |
| null | - | |
| Number of Rows | - | 2 |
| Number of Wire Entries | - | 18 |
| Operating Temperature | - | 110 °C |
| Pitch | - | 11.12 mm |
| Pitch | - | 0.438 in |
| Terminal Block Type | - | Barrier Block |
| Terminal Screw Finish | - | Tin |
| Terminal Screw Material | - | Steel |
| Top Termination | - | Screws, Screws with Captive Plate, Screws with Solder Lugs, Single |
| Wire Gauge | - | 22 AWG |
| Wire Gauge | - | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
2009 Series
CONN BARRIER STRIP 9CIRC 0.438"
| Part | Top Termination | Material - Insulation | Operating Temperature | Current Rating (Amps) | Wire Gauge [Max] | Wire Gauge [Min] | Features | Pitch [x] | Pitch [x] | Mounting Type | Number of Wire Entries | Bottom Termination | Barrier Type | Material Flammability Rating | Terminal Block Type | Number of Rows | Terminal Screw Material | Terminal Screw Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 2009-YWY | Screws | Polyphenylene Oxide (PPO) | 110 °C | 30 A | 22 AWG | 10 AWG | Flange | 11.12 mm | 0.438 in | Chassis, Panel, Through Hole | 18 | Wire Wrap | 2 Wall (Dual) | UL94 V-0 | Barrier Block | 2 | ||
Curtis Industries 2009W | Screws with Captive Plate | Polyphenylene Oxide (PPO) | 110 °C | 30 A | 22 AWG | 10 AWG | Flange | 11.12 mm | 0.438 in | Chassis, Panel | 18 | Closed | 2 Wall (Dual) | UL94 V-0 | Barrier Block | 2 | Steel | |
Curtis Industries 2009-YSY | Screws | Polyphenylene Oxide (PPO) | 110 °C | 30 A | 22 AWG | 10 AWG | Flange | 11.12 mm | 0.438 in | Chassis, Panel, Through Hole | 18 | Solder Tab | 2 Wall (Dual) | UL94 V-0 | Barrier Block | 2 | ||
Curtis Industries 2009-YSY | ||||||||||||||||||
Curtis Industries 2009-3/4ST | Screws with Solder Lugs, Single | Polyphenylene Oxide (PPO) | 110 °C | 30 A | 22 AWG | 10 AWG | Flange | 11.12 mm | 0.438 in | Chassis, Panel | 18 | Closed | 2 Wall (Dual) | UL94 V-0 | Barrier Block | 2 | Tin |
Description
General part information
2009 Series
9 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
