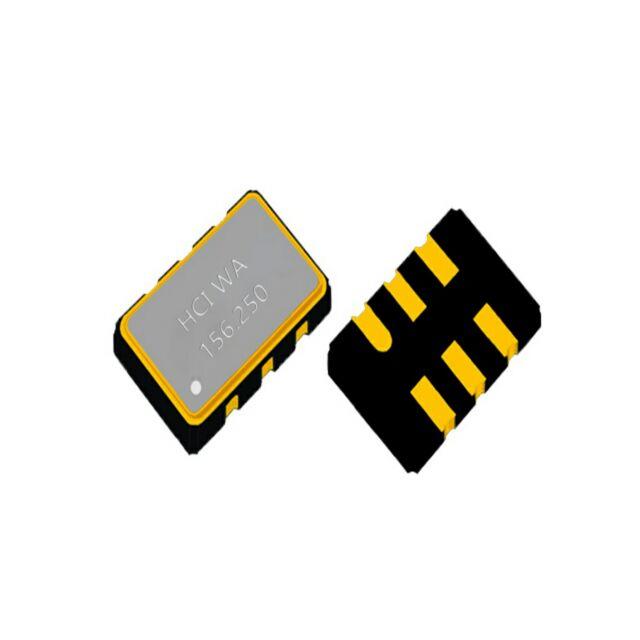

1553C6-156.250G33DTSTK
ActiveSuzhou Hangjing Elec&Tech Co.,Ltd
XTAL OSC XO 156.25MHZ HCSL SMD
1553C6-156.250G33DTSTK
ActiveSuzhou Hangjing Elec&Tech Co.,Ltd
XTAL OSC XO 156.25MHZ HCSL SMD
Description
General part information
1553C6-156.250G33DTSTK
156.25 MHz XO (Standard) HCSL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 1553C6-156.250G33DTSTK |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 40 mA |
| Frequency | 156.25 MHz |
| Frequency Stability | 30 ppm, 20 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.051 in, 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCSL |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
