Description
General part information

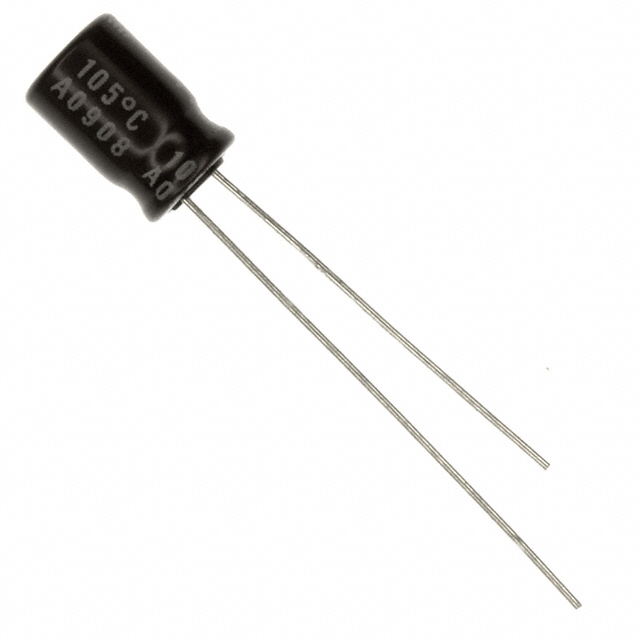

UTT1V470MDD
47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UTT1V470MDD |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| Height - Seated (Max) | 0.354 in |
| Impedance | 1.1 Ohms |
| Lead Spacing | 0.098 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Ripple Current | 163 mA, 65.2 mA |
| Size / Dimension Diameter | 0.248 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
