AAA4FZH

Active

Switchcraft Inc.

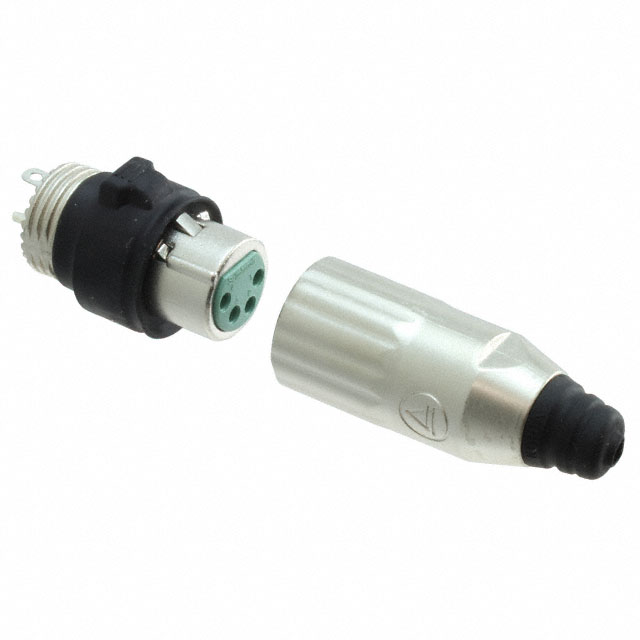

CONN PLUG FMALE XLR 4P SLDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 4P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	AAA4FZH

Applications	Audio, Instrumentation
Backshell Material, Plating	Nickel, Zinc Alloy
Cable Opening [Max] [diameter]	7.24 mm
Cable Opening [Max] [diameter]	0.285 in
Cable Opening [Min] [diameter]	0.15 in
Cable Opening [Min] [diameter]	3.81 mm
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Ingress Protection	IP66
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	XLR
Shielding	Shielded

CONN PLUG FMALE XLR 4P SLDR CUP

Part	Mounting Type	Shell Material	Insert Material	Ingress Protection	Applications	Contact Material	Number of Positions	Orientation	Backshell Material, Plating	Features	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Shielding	Connector Type	Contact Finish - Mating	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Fastening Type	Shell Finish	Primary Material
Switchcraft Inc. AAA4FZH	Free Hanging (In-Line)	Zinc Alloy	Thermoplastic	IP66	Audio, Instrumentation	Copper Alloy	4	Keyed	Nickel, Zinc Alloy	Backshell, Cable Clamp, Ground, Strain Relief	Silver	65 °C	-40 °C	XLR	Shielded	Female Sockets, Plug	Silver	0.15 in	3.81 mm	7.24 mm	0.285 in	Latch Lock	Nickel	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup
