83656 0021000

Active

Belden Inc.

CABLE 6COND 18AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 18AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83656 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter	5.79 mm
Jacket (Insulation) Diameter	0.228 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Wire Gauge	Shield Coverage	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Ratings	Shield Material	Cable Type	Usage	Length [x]	Length [x]	Jacket (Insulation) Material	Jacket Color	Voltage	Conductor Material	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Length	Length
Belden Inc. 83656 0024000	18 AWG	85 % 100 %	5.79 mm	0.228 in	UL Style CMP	Aluminum Copper Tinned	Multi-Conductor	Audio Control Instrumentation	1219.2 m	4000 ft	Fluorinated Ethylene-Propylene (FEP) Plenum	Red	300 V	Copper Tinned	6	0.356 mm	0.014 in	Fluorinated Ethylene-Propylene (FEP)	200 °C	-70 °C	19	30 AWG	Braid Foil
Belden Inc. 83656 0021000	18 AWG	85 % 100 %	5.79 mm	0.228 in	UL Style CMP	Aluminum Copper Tinned	Multi-Conductor	Audio Control Instrumentation			Fluorinated Ethylene-Propylene (FEP) Plenum	Red	300 V	Copper Tinned	6	0.356 mm	0.014 in	Fluorinated Ethylene-Propylene (FEP)	200 °C	-70 °C	19	30 AWG	Braid Foil	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 14.57

General part information

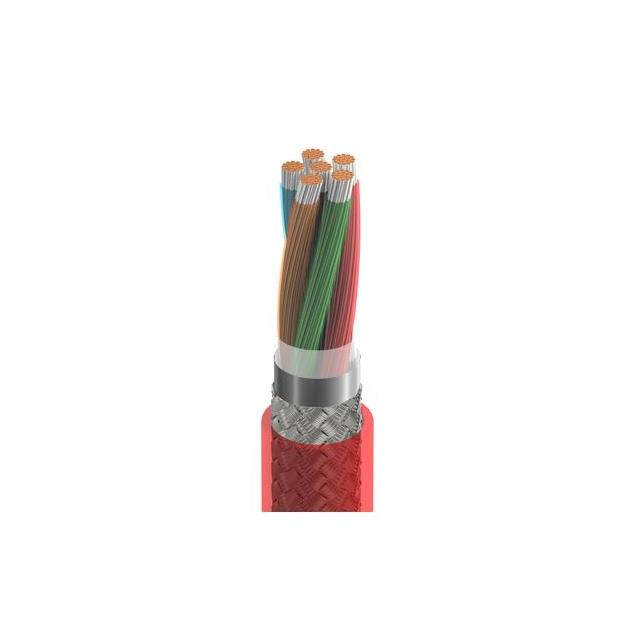

6 Conductor Multi-Conductor Cable Red 18 AWG Foil, Braid 1000.0' (304.8m)
