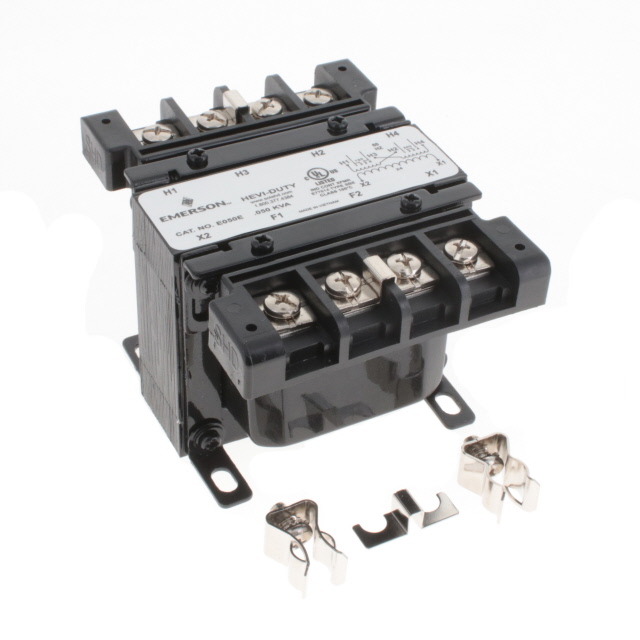

E050E

Active

SolaHD

PWR XFMR LAMINATED 50VA CHAS MT

Search across all available documentation for this part.

Active

SolaHD

PWR XFMR LAMINATED 50VA CHAS MT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PWR XFMR LAMINATED 50VA CHAS MT

Technical documentation and resources

Parameters and characteristics commom to parts in this series

PWR XFMR LAMINATED 50VA CHAS MT

Part	Type	Secondary Winding(s)	Termination Style	Primary Winding(s)	Mounting Type	Power - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Voltage - Primary	Voltage - Secondary (Full Load)
SolaHD E050TE	Laminated Core	Multiple Taps, Single	Quick Connect, Solder	Multiple Taps, Single	Chassis Mount	50 VA
SolaHD E050EWB	Laminated Core		Quick Connect, Solder		Chassis Mount	50 VA	76.5 mm	101.3 mm
SolaHD E050JL	Laminated Core	Multiple Taps, Single	Quick Connect, Solder	Multiple Taps, Single	Chassis Mount	50 VA	76.5 mm	101.3 mm	69.1 mm
SolaHD E050TC	Laminated Core	Multiple Taps, Single	Quick Connect, Solder	Multiple Taps, Single	Chassis Mount	50 VA	86.1 mm	110.7 mm	75.2 mm
SolaHD E050WA	Laminated Core		Quick Connect, Solder		Chassis Mount	50 VA	76.5 mm	101.3 mm
SolaHD E050D	Laminated Core	Single	Quick Connect, Solder	Dual	Chassis Mount	50 VA	76.5 mm	101.3 mm	69.1 mm	240 V, 480 V	24 V
SolaHD E050E	Laminated Core	Single	Quick Connect, Solder	Dual, Multiple Taps	Chassis Mount	50 VA	76.5 mm	101.3 mm	69.1 mm	120 V, 240 V	24 V
SolaHD E050W	Laminated Core		Quick Connect, Solder		Chassis Mount	50 VA	76.5 mm	101.3 mm
SolaHD E050EWA	Laminated Core		Quick Connect, Solder		Chassis Mount	50 VA	76.5 mm	101.3 mm
SolaHD E050JN	Laminated Core	Multiple Taps, Single	Quick Connect, Solder	Multiple Taps, Single	Chassis Mount	50 VA	86.1 mm	110.7 mm	75.2 mm
