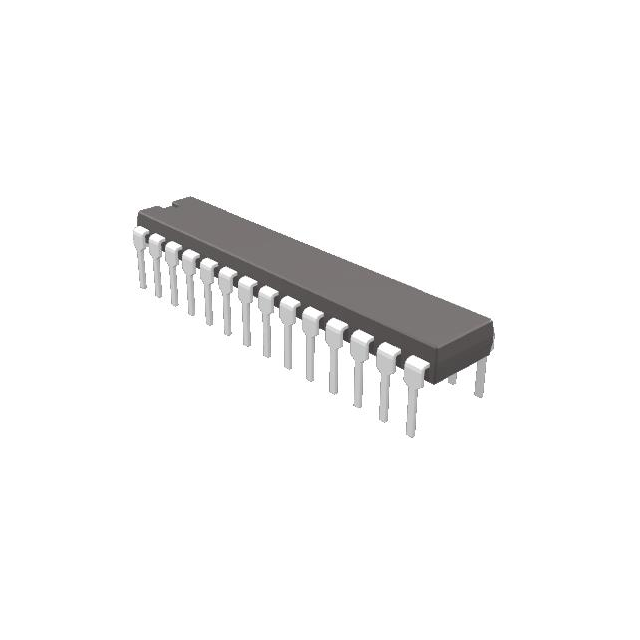

LS7267

Active

LSI/CSI

IC BCD COUNTER DUAL 24BIT 28DIP

Search across all available documentation for this part.

Active

LSI/CSI

IC BCD COUNTER DUAL 24BIT 28DIP

Technical Specifications

Parameters and characteristics for this part

IC BCD COUNTER DUAL 24BIT 28DIP

Part	Supplier Device Package	Package / Case	Package / Case	Package / Case	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Bits per Element	Operating Temperature [Max]	Operating Temperature [Min]	Reset	Logic Type	Count Rate	Number of Elements	Timing	Trigger Type	Direction
LSI/CSI LS7267	28-DIP	28-DIP	0.6 in	15.24 mm	Through Hole	5.5 V	3 V	24	80 °C	-25 °C	Synchronous	BCD Counter, Binary Counter	50 MHz	2	Synchronous	Positive Edge	Down, Up

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Counter IC BCD Counter, Binary Counter 2 Element 24 Bit Positive Edge 28-DIP

Technical documentation and resources

No documents available
