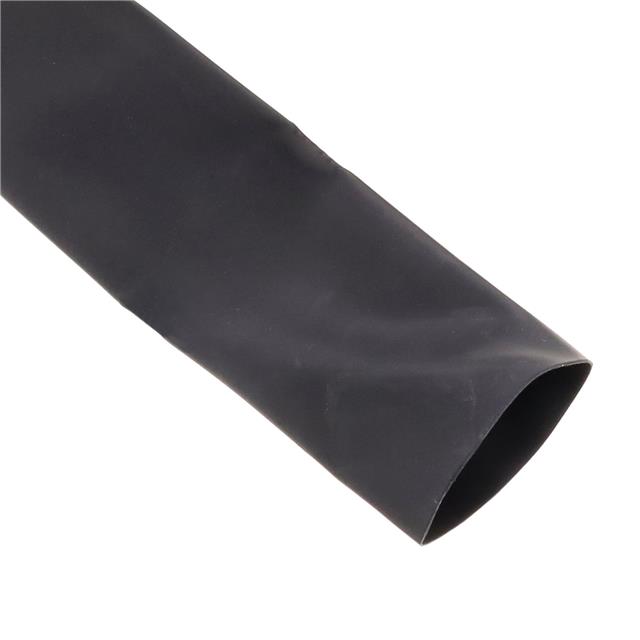

B2 3/4 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 3/4" BLACK FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSumitube® Solution Guide Datasheet

B2 3/4 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 3/4" BLACK FOOT

Deep-Dive with AI

DocumentsSumitube® Solution Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B2 3/4 BLACK SPL	B2 3/4 Series

Color	Black	White, Yellow, Black
Features	UV Resistant, Flame Retardant	Flame Retardant, UV Resistant
Inner Diameter - Recovered [diameter]	0.374 "	0.374 "
Inner Diameter - Recovered [diameter]	9.5 mm	9.5 mm
Inner Diameter - Supplied [diameter]	0.787 in	0.787 in
Inner Diameter - Supplied [diameter]	19.99 mm	19.99 mm
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1.22 m
Length	-	4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.76 mm	0.76 mm
Recovered Wall Thickness	0.03 "	0.03 "
Shrink Temperature	90 °C	90 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	61 m	61 m
Spool Size	200 '	200 '
Type	Tubing, Flexible	Tubing, Flexible

B2 3/4 Series

HEATSHRINK 3/4" WHITE FOOT

Part	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Features	Material	Recovered Wall Thickness	Recovered Wall Thickness	Spool Size	Spool Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Length	Length [x]	Length [x]
Sumitomo Electric Interconnect Products, Inc. B2 3/4 WHITE SPL	90 °C	0.374 "	9.5 mm	White	Flame Retardant	Polyolefin (PO), Irradiated	0.76 mm	0.03 "	61 m	200 '	135 °C	-55 °C	Tubing, Flexible	0.787 in	19.99 mm	2 to 1	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/4 YELLOW 4FT	90 °C	0.374 "	9.5 mm	Yellow	Flame Retardant	Polyolefin (PO), Irradiated	0.76 mm	0.03 "			135 °C	-55 °C	Tubing, Flexible	0.787 in	19.99 mm	2 to 1		1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 3/4 YELLOW SPL	90 °C	0.374 "	9.5 mm	Yellow	Flame Retardant	Polyolefin (PO), Irradiated	0.76 mm	0.03 "	61 m	200 '	135 °C	-55 °C	Tubing, Flexible	0.787 in	19.99 mm	2 to 1	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/4 WHITE 4FT	90 °C	0.374 "	9.5 mm	White	Flame Retardant	Polyolefin (PO), Irradiated	0.76 mm	0.03 "			135 °C	-55 °C	Tubing, Flexible	0.787 in	19.99 mm	2 to 1		1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 3/4 BLACK 4FT	90 °C	0.374 "	9.5 mm	Black	Flame Retardant, UV Resistant	Polyolefin (PO), Irradiated	0.76 mm	0.03 "			135 °C	-55 °C	Tubing, Flexible	0.787 in	19.99 mm	2 to 1		1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 3/4 BLACK SPL	90 °C	0.374 "	9.5 mm	Black	Flame Retardant, UV Resistant	Polyolefin (PO), Irradiated	0.76 mm	0.03 "	61 m	200 '	135 °C	-55 °C	Tubing, Flexible	0.787 in	19.99 mm	2 to 1	Enter Number of Feet in Order Quantity

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 1.72
		5	$ 1.57
		10	$ 1.19
		25	$ 1.13
		50	$ 1.06
		100	$ 1.00

Description

General part information

B2 3/4 Series

Heat Shrink Tubing, Flexible 0.787" (19.99mm) 2 to 1 Black Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Sumitube® Solution Guide

Datasheet
