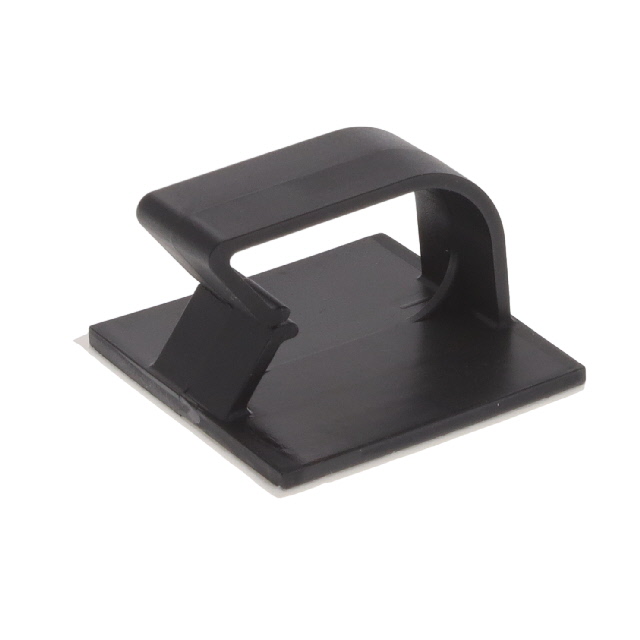

BEC75-A-L20
ActivePanduit Corp
BEVEL ENTRY CORD CLIP, ADH., .75" (19.1M ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BEC75-A-L20
ActivePanduit Corp
BEVEL ENTRY CORD CLIP, ADH., .75" (19.1M ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BEC75-A-L20 | BEC75 Series |
|---|---|---|
| Adhesive | Rubber Based | Rubber Based, Acrylic Based |
| Color | Black | Black, Natural |
| Features | - | Weather Resistant |
| Height [z] | 0.89 " | 0.89 " |
| Height [z] | 22.61 mm | 22.61 mm |
| Length | 37.08 mm | 37.08 mm |
| Length | 1.46 " | 1.46 " |
| Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Adhesive | Adhesive |
| Opening Size | 19.05 mm | 19.05 mm |
| Opening Size [z] | 0.75 in | 0.75 in |
| Type | Clip, Wire Saddle | Clip, Wire Saddle |
| Type Attributes | Side Entry | Side Entry |
| Width | 37.85 mm | 37.85 mm |
| Width [x] | 1.49 in | 1.49 in |
BEC75 Series
BEVEL ENTRY CORD CLIP, ADH., .75" (19.1M ROHS COMPLIANT: YES
| Part | Height [z] | Height [z] | Length | Length | Type Attributes | Color | Width | Width [x] | Opening Size [z] | Opening Size | Material | Type | Adhesive | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp BEC75-A-L20 | 0.89 " | 22.61 mm | 37.08 mm | 1.46 " | Side Entry | Black | 37.85 mm | 1.49 in | 0.75 in | 19.05 mm | Polyamide (PA66), Nylon 6/6 | Clip, Wire Saddle | Rubber Based | Adhesive | |
Panduit Corp BEC75-AT-T0 | 0.89 " | 22.61 mm | 37.08 mm | 1.46 " | Side Entry | Black | 37.85 mm | 1.49 in | 0.75 in | 19.05 mm | Polyamide (PA66), Nylon 6/6 | Clip, Wire Saddle | Acrylic Based | Adhesive | Weather Resistant |
Panduit Corp BEC75-A-L | 0.89 " | 22.61 mm | 37.08 mm | 1.46 " | Side Entry | Natural | 37.85 mm | 1.49 in | 0.75 in | 19.05 mm | Polyamide (PA66), Nylon 6/6 | Clip, Wire Saddle | Rubber Based | Adhesive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BEC75 Series
Cable Clip, Wire Saddle Black Adhesive 0.750" (19.05mm)
